12MP HD 4.3 Inch Polarizer Portable Lcd Digital Microscope Screen Monocular

12MP HD 4.3 Inch Polarizer Portable Lcd Digital Microscope Screen Monocular
12MP HD 4.3 Inch Polarizer Portable Lcd Digital Microscope Screen Monocular

Large Image :  12MP HD 4.3 Inch Polarizer Portable Lcd Digital Microscope Screen Monocular

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949, CE
Model Number: M20128
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Box
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

12MP HD 4.3 Inch Polarizer Portable Lcd Digital Microscope Screen Monocular

Description
Customization: OEM, ODM Warranty: 1 Year
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Color: Black Drawtube: Monocular
Theory: Digital Microscope Magnification: 10X-250X
Photo Resolution: 12MP Video Resolution: 1080P
Focus Range: From 0mm To 110mm Storage: Up To 32G
High Light:

4.3 Inch portable lcd digital microscope

,

12MP portable lcd digital microscope

,

HD Polarizer digital microscope with screen



12MP 4.3 Inch Support HD Output Polarizer LCD Digital Microscope

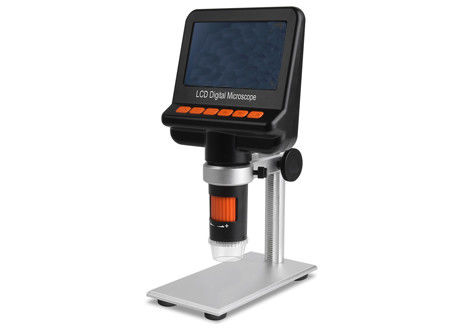

M20128 12MP 4.3 Inch Support HD Output Polarizer LCD Digital Microscope. It is a polarizer version of digital microscope used to observe reflective objective like PCB, diamond and metal etc.



Features:



- Measurement is supported from computer software.

- Software and driver can support four screens to work simultaneously.

- The switchable polarizer is easy to observe reflective objects like SMD board, diamond, metal etc.



Item Description / Value
Drawtube: Monocular
Screen: LCD 4.3 Inch
Polarizer: Switchable polarizer
Output: HD port to TV/monitor; USB port to computer/laptop
Magnification: 10x~250x, up to 1200x by digital zoom
Photo Resolution: 12MP
Video resolution: 1080P
Focus Range: from 0mm to 110mm
Light source: 8pcs SMT LED, brightness adjustable
Operation System: Compatible with Window 7/8/10; macOS 10.14 and above
OSD Language: There are 16 languages built in the software
Plug and play: support to connect the digital microscope to PC by plug and play
Storage: support Micro-SD card up to 32G(not included in the package)
Photo & Video: Support photo and video recording by computer software
Compatible software/driver: Digicapture Pro (with measurement and four display concurrently)
Packaging size: 31*22*14 cm
Gross weight: 0.85 kg
