Achromatic Digital Microscope 1000x WF10X/18mm Biological Binocular Microscope

Achromatic Digital Microscope 1000x WF10X/18mm Biological Binocular Microscope
Achromatic Digital Microscope 1000x WF10X/18mm Biological Binocular Microscope

Large Image :  Achromatic Digital Microscope 1000x WF10X/18mm Biological Binocular Microscope

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M16102
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Achromatic Digital Microscope 1000x WF10X/18mm Biological Binocular Microscope

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Binocular
Theory: Biological Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Eyepiece: WF10X/18mm
Objective: 4X,10X,40X,100X Nosepiece: Quadruple Nosepiece
Stage: Double Layers Mechanical Stage Focusing: Coaxial Coarse & Fine
Highlight:

Achromatic digital microscope 1000x

,

optical digital microscope 1000x

,

WF10X/18mm biological binocular microscope



1000X Binocular Biological Comparison Microscope

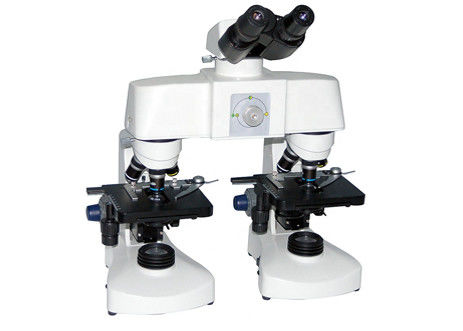

M16102 1000X Binocular Biological Comparison Microscope. M16102 biological comparison microscope is used to analyze side-by-side specimens. It consists of two microscope connected to an optical bridge, which gives choice of 4 kinds of observation view field: full left, full right, split and overlapping image. It is designed for identifying object's structure, comparing similarities and differences between specimens, such as pathological slides, biological slides and so on. It is an ideal instrument for teaching, biological and medical fields etc.



Features:



- It can be used to observe two different specimens at the same time.

- Choice of 4 kinds of observation view field: full left, full right, split and overlapping image.

- With excellent infinity optical system and stable stage.

- Used for teaching, biological and medical fields etc.



Item Description / Value Configuration
Optical system: Achromatic optical system
View tube:

Trinocular, 30° Tilt, 360°rotatable.

Splitting ratio: 100: 0

IPD adjustment: 54mm ~ 75mm.

Diopter adjustment: ±5 diopters.

Eyepiece: High eye level WF PL10 × (Φ22mm)
Objective: Light field: Flat field achromatic objective lens: 4X, 10X, 40X,100X
Optional: 20X, 50X
Nosepiece: Four-hole converter
Comparison viewing:

Full left image.

Full right image.

Part of left & right images.

Left & right superposition image.

Comparison head:

Magnification of comparison head: 1X,

View field: 20mm.

Focusing mechanism:

Coaxial positioning system.

Tightness and height limitation of coarse regulation are adjustable.

Fine adjustment accuracy: 0.002mm, moving range adjustable.

Light source: Transmission Kohler illumination system; default center, brightness adjustable. 6V/30W halogen lamp
3W LED.
Condenser: Light field: NA1.25 /0.22 swing out achromatic condenser
Filter: Yellow, green, blue, neutral filter.
Power supply: AC90V~240V, 50Hz/60Hz.

Remarks: Means Current Configuration Means Optional
