12V 50W 2X 240X Forensic Comparison Microscope Trinocular Digital Camera

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

12V 50W 2X 240X Forensic Comparison Microscope Trinocular Digital Camera

12V 50W 2X 240X Forensic Comparison Microscope Trinocular Digital Camera
12V 50W 2X 240X Forensic Comparison Microscope Trinocular Digital Camera

Large Image :  12V 50W 2X 240X Forensic Comparison Microscope Trinocular Digital Camera

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M16107
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

12V 50W 2X 240X Forensic Comparison Microscope Trinocular Digital Camera

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Head: Trinocular
Theory: Comparison Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Eyepiece: WF10X/22mm, WF20X/12mm
Objective: 0.5X, 1X, 1.5X, 2X, 4X, 6X Auxiliary Lens: 0.4X, 2.0X
Camera: 3.0M Digital Adapter: 0.5X C-Mount
Magnification: 2X~240X Nosepiece: 6-Position
Working Distance: 101mm View Field: 2.3~62mm
High Light:

12V 50W Forensic Comparison Microscope

,

240X Forensic Comparison Microscope

,

2X trinocular microscope with camera

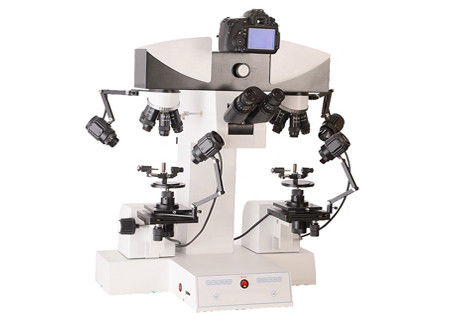

Trinocular 2X~240X Motorized Digital Forensic Comparison Microscope With Digital Camera



M16107 Trinocular 2X~240X Motorized Digital Forensic Comparison Microscope With Digital Camera. M16107 comparison microscope is a motorized version for the criminal investigation application with digital camera. Motorized /manual viewfield changeover full /split /overlapping image, control working stage X/Y/Z 3D movement, control round working stage rotation +/- direction and control to change objective magnification. Convenient on operation.



Features:



- Halogen 12V50W fan cooling light source and LED 5W source.

- Flexible holder for easy positioning.

- Widely used in the field of judicial identification.



Item Description / Value
Head: 0-45° Titable Bionocular Head, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable
Magnification: 2X~240X
Eyepiece: High eye level WF10X/22mm, WF20X/12mm
Objective: LWD Infinity Plan Achromatic Objective 0.5X, 1X, 1.5X, 2X, 4X, 6X
Auxiliary Lens: 0.4X, 2.0X
View Field: Full Left, Full Right, Split Image, Overlapping Image, 2mm-60mm
Nosepiece: 6-Position
Working distance: 101mm
View Field: 2.3~62mm
Magnification Correcting: Magnification Correction System, With Correcting Lens
Separation Line Adjusting: Seperation Line Adjust System In Back, With Special Designed Adjust Driver
Stage:

*Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm;

* Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable;

* Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm;

Light source:

*12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable, 2pcs;

*5W LED Cold Light, High Brightness, Brightness Adjustable, 2pcs;

*Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface, 2pcs;

*Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights, 2pcs;

*Transmit Bottom Light (Built-in Working Stage);

*Ultraviolet Light Lens, 2pcs;

*Filters: Red, Blue, Yellow, Green, 2pcs Each Color.

Camera: Built-in 3.0M High Resolution Color CCD Camera,USB 2.0 Output, 2048*1536 Pixels, Pixel Size 3.2*3.2μm
Adapter:

*0.5x CCD Adapter For Digital Camera,1pc;

*Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon)

Working Table: Size 60*120mm, Height 65mm, Motorized Up/Down 160mm
Power: Power Supply 80-240V
Bullet Holder: Standard Bullet Holder 2 Sets,Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects
Dimension: Instrument Size 40*60*72cm



12V 50W 2X 240X Forensic Comparison Microscope Trinocular Digital Camera 0
