Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M16106
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Trinocular WF20X Portable Lcd Digital Microscope 2X Trinocular Motorized Microscope Stage

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Head: Trinocular
Theory: Comparison Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Eyepiece: WF10X/22mm, WF20X/12mm
Objective: 0.5X, 1X, 1.5X, 2X, 4X, 6X Auxiliary Lens: 0.4X, 2.0X
Camera: 3.0M Digital Adapter: 0.5X C-Mount
Magnification: 2X~240X Nosepiece: 6-Position
High Light:

2X portable lcd digital microscope

,

WF20X portable lcd digital microscope

,

Trinocular motorized microscope stage

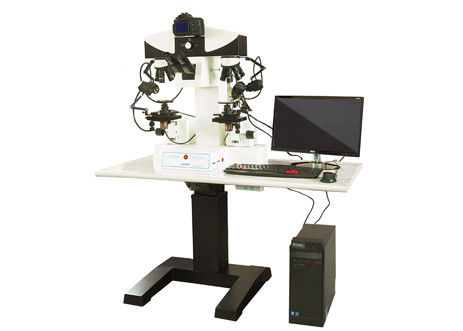

2X~240X Motorized Digital Forensic Comparison Microscope



M16106 2X~240X Motorized Digital Forensic Comparison Microscope. M16106 comparison microscope is a motorized version for the criminal investigation application. It’s more convenient on operation.



Features:



- Motorized /manual viewfield changeover full /split /overlapping image, control working stage X/Y/Z 3D movement, control round working stage rotation +/- direction and control to change objective magnification.

- Halogen 12V50W fan cooling light source and LED 5W source.

- Flexible holder for easy positioning.

- Widely used in the field of judicial identification.



Item Description / Value
Head: 0-45° Titable Bionocular Head, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable
Magnification: 2X~240X
Eyepiece: High eye level WF10X/22mm, WF20X/12mm
Objective: LWD Infinity Plan Achromatic Objective 0.5X, 1X, 1.5X, 2X, 4X, 6X
Auxiliary Lens: 0.4X, 2.0X
View Field: Full Left, Full Right, Split Image, Overlapping Image, 2mm-60mm
Nosepiece: 6-Position
Working distance: 101mm
View Field: 2.3~62mm
Magnification Correcting: Magnification Correction System, With Correcting Lens
Separation Line Adjusting: Seperation Line Adjust System In Back, With Special Designed Adjust Driver
Stage:

*Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm;

* Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable;

* Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm;

Light source:

*12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable, 2pcs;

*5W LED Cold Light, High Brightness, Brightness Adjustable, 2pcs;

*Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface, 2pcs;

*Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights, 2pcs;

*Transmit Bottom Light (Built-in Working Stage);

*Ultraviolet Light Lens, 2pcs;

*Filters: Red, Blue, Yellow, Green, 2pcs Each Color.

Camera: Built-in 3.0M High Resolution Color CCD Camera,USB 2.0 Output, 2048*1536 Pixels, Pixel Size 3.2*3.2μm
Adapter:

*0.5x CCD Adapter For Digital Camera,1pc;

*Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon)

Working Table: Size 60*120mm, Height 65mm, Motorized Up/Down 160mm
Power: Power Supply 80-240V
Bullet Holder: Standard Bullet Holder 2 Sets,Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects
Dimension: Instrument Size 40*60*72cm
