Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Warranty: | 1 Year | Drawtube: | Monocular |
| Theory: | Biological Microscope | Lead-time: | 15-20 Work Days |
| Supply Ability: | 1000 PCS/Month | Magnification: | 40X-1000X |
| Eyepiece: | WF10X/18mm | Nosepiece: | 4-Position |
| Objective: | 4X, 10X, 40X, 100X | Stage: | Double Layers Mechanical Stage |
| Focusing: | Coaxial Coarse And Fine Focusing System | Illumination: | 3W LED Lamp |
| High Light: | 1000X Monocular Biological Microscope,4 Position Monocular Biological Microscope,Mechanical Stage Monocular Biological Microscope |
||

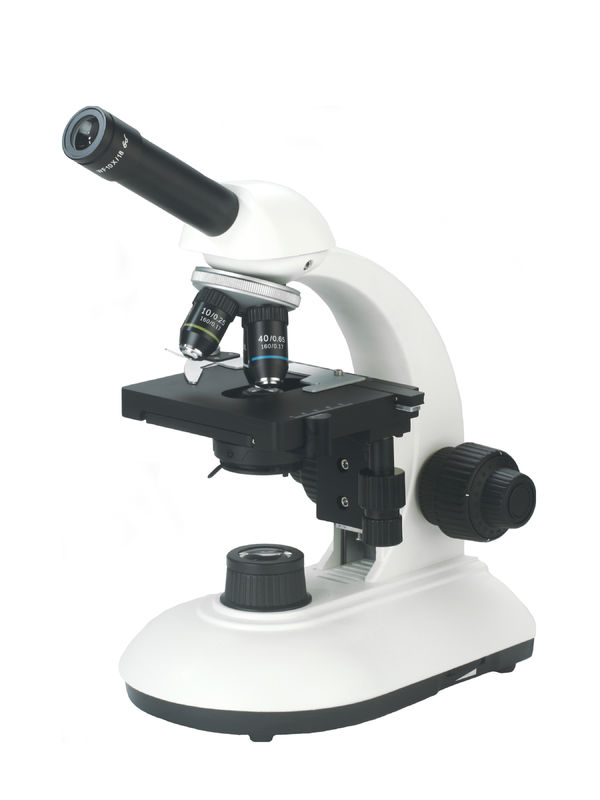

40X-1000X Monocular Biological Microscope with Dark field and Polarizing Options
M12133 40X-1000X Monocular Biological Microscope with Dark field and Polarizing Options has a maxium magnification 1600X by the eyepieces WF 16X /13 mm, which leads to a wider magnification range for the researchers to choose. This series biological microscope offers outstanding industry leading optics, illumination, and performance to meet the expectations of professionals and educational market. With its solid cast metal body & head, metal internal gears and LED illumination system the microscope is built to last.
Features:
- Various eyepieces to choose.
- The maxium magnification is 1600X by the eyepieces WF 16X /13 mm.
- It’s easy to upgrade bo binocular and trinocular version.
- 4X 10X 40X and 100X Achromatic objectives.
| Items | Description / Value | M12133 |
| Eyepiece | WF 10X /18 mm(Pointer is optional) | ● |
| WF 10X /18 mm(Pointer) | ○ | |
| WF 10X /18 mm(adjustable, 0.1 mm) | ○ | |
| WF 16X /13 mm | ○ | |
| WF15X /13 mm | ○ | |
|

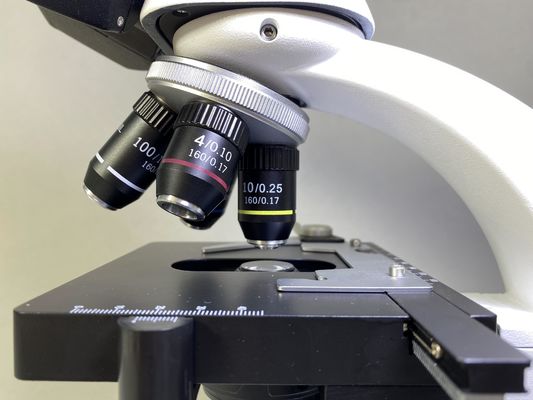

Achromatic Objective |
4X /0.10, W.D=18.6mm | ● |
| 10X /0.25, W.D=6.5mm | ● | |
| 40X /0.65 (S), W.D=0.47mm | ● | |
| 100X /1.25(S, Oil), W.D=0.07mm | ● | |
| 20X /0.40, W.D=1.75mm | ○ | |
| 60X /0.80(S), W.D=0.10mm | ○ | |
| Monocular Head | Inclined 30°, Rotatable 360° | ● |
|
Butterfly Seidentopf Trinocular Head |
Inclined 30°, Rotatable 360°, Interpupilary Distance 48-75mm, Light Distribution 20:80 |
○ |
| Nosepiece | Quadplex | ● |

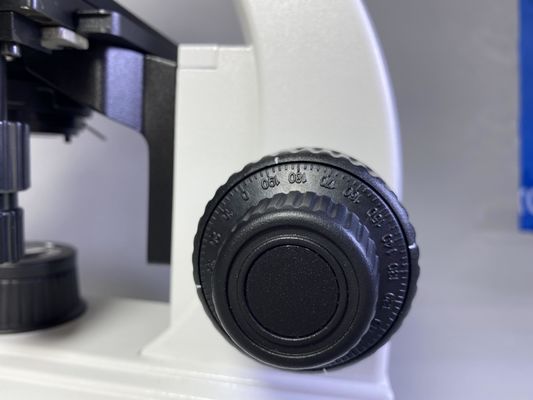

| Focusing Knobs |
Coaxial Coarse and Fine Focusing Knobs Travel Range: 22mm, Scale: 2µm |
● |
| Mechanical Stage |
Stage Size:125X115mm, Travel: 35X75mm |
● |
| Condenser | Abbe N.A. 1.25 (Iris Diaphragm) | ● |
| Dark Field Ring | Available For 4X-40X Objective | ○ |
| Polarizing Attachment | Analyzer / Polarizer | ○ |
| Mirror | Plano-concave mirror | ○ |
| Base | 3W LED Illumination, Voltage: 100V-240V | ● |
Note: ● means standard, ○ means optional
Packing Size: 337mmx 242mmx 417mm; Gross Weight: 6.5 kg; Net Weight: 5.0 kg
0.5X/1X C-Mount Plano-concave mirror
Simple polarizing unit polarizer, analyzer for simple polarizing unit
