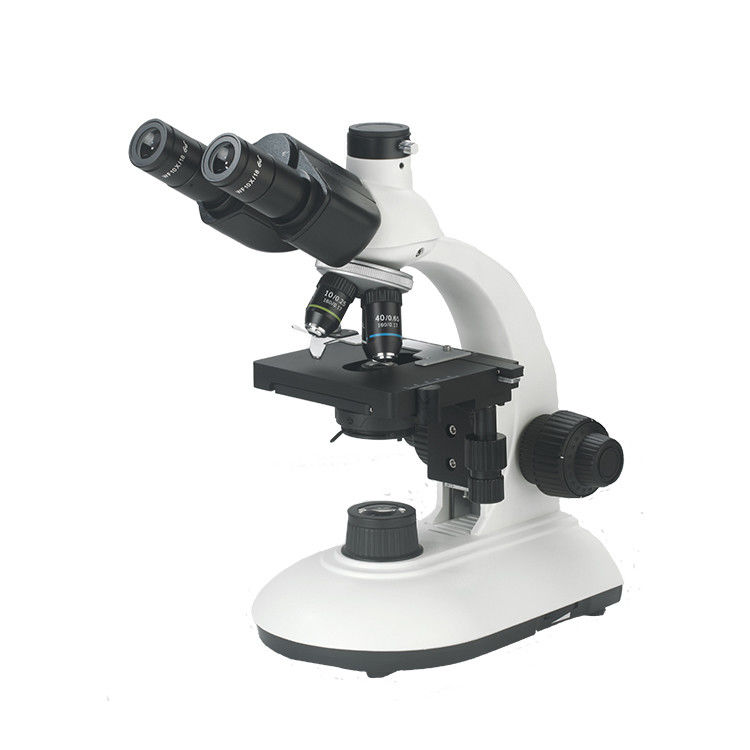

Polarizing Trinocular Biological Microscope 1000X With WF10X Eyepiece

Polarizing Trinocular Biological Microscope 1000X With WF10X Eyepiece
Polarizing Trinocular Biological Microscope 1000X With WF10X Eyepiece

Large Image :  Polarizing Trinocular Biological Microscope 1000X With WF10X Eyepiece

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M12135
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Polarizing Trinocular Biological Microscope 1000X With WF10X Eyepiece

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Trinocular
Theory: Biological Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Magnification: 40X-1000X
Eyepiece: WF10X/18mm Nosepiece: 4-Position
Objective: 4X, 10X, 40X, 100X Stage: Mechanical Stage
Focusing: Coaxial Coarse And Fine Focusing System Illumination: 3W LED Lamp
High Light:

Polarizing Trinocular Biological Microscope

,

Trinocular Biological Microscope 1000X

,

WF10X Eyepiece Trinocular Biological Microscope



40X-1000X Trinocular Biological Microscope with Dark field and Polarizing Options


M12133 40X-1000X Trinocular Biological Microscope with Dark field and Polarizing Options has a maxium magnification 1600X by the eyepieces WF 16X /13 mm, which leads to a wider magnification range for the researchers to choose. This series biological microscope offers outstanding industry leading optics, illumination, and performance to meet the expectations of professionals and educational market. With its solid cast metal body & head, metal internal gears and LED illumination system the microscope is built to last.


Features:


- Various eyepieces to choose.
- The maxium magnification is 1600X by the eyepieces WF 16X /13 mm.
- It’s easy to upgrade bo binocular and trinocular version.
- 4X 10X 40X and 100X Achromatic objectives.



Items Specification M12135
Eyepiece WF 10X /18 mm(Pointer is optional) ●●
WF 10X /18 mm(Pointer) ○○
WF 10X /18 mm(adjustable, 0.1 mm) ○○
WF 16X /13 mm ○○
WF15X /13 mm ○○

Achromatic
Objective

4X /0.10, W.D=18.6mm
10X /0.25, W.D=6.5mm
40X /0.65 (S), W.D=0.47mm
100X /1.25(S, Oil), W.D=0.07mm
20X /0.40, W.D=1.75mm
60X /0.80(S), W.D=0.10mm
Butterfly Seidentopf Binocular Head Inclined 30°, Rotatable 360°, Interpupilary Distance 48-75mm

Butterfly Seidentopf
Trinocular Head

Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm,
Light Distribution 20:80

Nosepiece Quadplex
Focusing Knobs

Coaxial Coarse and Fine Focusing Knobs
Travel Range: 22mm, Scale: 2µm

Mechanical Stage

Stage Size:125X 115mm,
Travel: 35X 75mm

Condenser Abbe N.A. 1.25 (Iris Diaphragm)
CCD 5MP with 0.5X/1X C-Mount
Dark Field Ring Available For 4X-40X Objective
Polarizing Attachment Analyzer / Polarizer
Mirror Plano-concave mirror
Base 3W LED Illumination, Voltage: 100V-240V

Note: ● means current configuration ○ means optional

Packing Size: 337mmx 242mmx 417mm; Gross Weight: 6.5 kg; Net Weight: 5.0 kg

Polarizing Trinocular Biological Microscope 1000X With WF10X Eyepiece 0 Polarizing Trinocular Biological Microscope 1000X With WF10X Eyepiece 1
                                 0.5X/1X C-Mount                                         Plano-concave mirror


Polarizing Trinocular Biological Microscope 1000X With WF10X Eyepiece 2
                     Simple polarizing unit polarizer, analyzer for simple polarizing unit

Polarizing Trinocular Biological Microscope 1000X With WF10X Eyepiece 3
