Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Warranty: | 1 Year | Drawtube: | Binocular |
| Theory: | Biological Microscope | Lead-time: | 15-20 Work Days |
| Supply Ability: | 1000 PCS/Month | Magnification: | 40X-1000X |
| Eyepiece: | WF10X/20mm | Nosepiece: | 4-Position |
| Objective: | 4X, 10X, 40X, 100X | Stage: | Mechanical Stage |
| Focusing: | Coaxial Coarse And Fine Focusing System | Illumination: | 3W LED Lamp |
| High Light: | Integrated Lab Biological Microscop,Drop Style Lab Biological Microscop,Binocular Type Lab Biological Microscop |
||

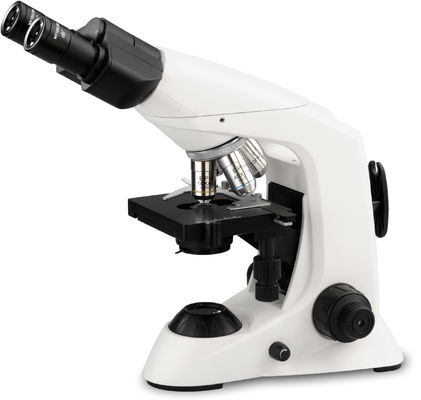

40X-1000X Drop-style Integrated Appearance Designed Binocular Biological Microscope
M12136 40X-1000X Drop-style Integrated Appearance Designed Binocular Biological Microscope. The optical system has high resolution and perfect definition from infinity correct optical system with 100X water objective instead of 100X oil objective, more be convenient for using. The appearance design is drop-style integrated, looks elegant. The ergonomics design makes low position operation, convenient for long-term using. New wound device for cable, easy to move and keeping. The changing of objectives can be watched by back side through the back watching window
Features:
- Drop-style integrated appearance design.
- The maxium magnification is 1600X by the eyepieces WF 16X /13 mm.
- It’s easy to upgrade to binocular and trinocular version.
- Easy to move and keeping.
- Low position operation, convenient for long-term using.
| Items | Description / Value | M12136 |
| Main Body | ● | |
| Eyepiece | WF10X/20mm (High Eyepoint) | ●● |
| Infinity Objective | EPLAN 4X/0.10 | ○ |
| EPLAN 10X/0.25 | ○ | |
| EPLAN 40X/0.65(S) | ○ | |
| EPLAN 100X/1.25(S,Oil) | ○ | |
| PLAN 4X/0.10 | ● | |
| PLAN 10X/0.25 | ● | |
| PLAN 20X/0.40(S) | ○ | |
| PLAN 40X/0.66(S) | ● | |
| PLAN 60X/0.80(S) | ○ | |
| PLAN 100X/1.25(S,Oil) | ● | |
| PLAN 100X/1.15(S,Water) | ○ | |
|
Butterfly Head |
Seidentopf Binocular Head, Inclined 30°,Rotatable 360°, Interpupilary Distance: 48-75mm |
● |
|
Seidentopf Trinocular Head, Inclined 30°,Rotatable 360°, Interpupilary Distance: 48-75mm Light Distribution: 20:80 |
○ | |
|
5 MP Pixel Digital Head 1/2’’CMOS color sequential scanning. USB2.0 Light Distribution: 20:80 |
○ | |
| Nosepiece | Quadplex | ● |
| Mechanical Stage | Size 145mmX140mm, Travel Range:76mmX52mm, Scale: 0.1mm, Two Slide Holder | ● |
|
Rackless(Integrated) stage, Size: 140×135mm,Travel Range: 75×35mm, Two-slide holder |
○ | |
| Abbe Condenser | N.A.1.25,With iris Diaphragm | ● |
| Coaxial Coarse and Fine Focusing Knobs |
Coarse Focusing Travel Range: 25mm Fine Focusing Travel Range: 2µm/division |
● |
| Aspheric Illumination | 3W LED Illumination,Voltage: 100V-240V | ● |
| Dark Field Unit | Dark Field Ring (Dry, N.A.0.9) | ○ |
| Polarizing Unit | Analyzer, Polarizer | ○ |
| Wire Winding Device | ● |
Note: ● means current configuration, ○ means optional
Packing Size: 345x 260x 455mm; Gross Weight: 6.7 kg; Net Weight: 5.3 kg
Size(mm)

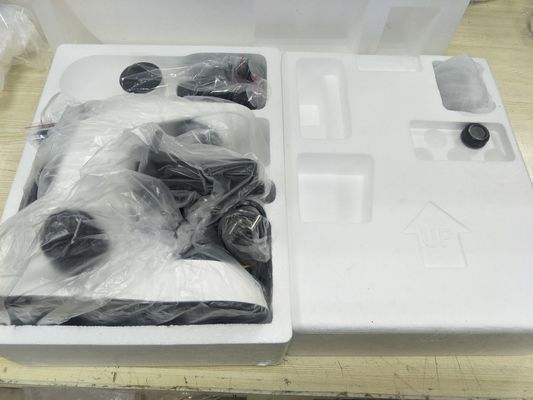

Packing:
Rackless(Integrated) stage:
