Integrated Dark Field Polarizing Lab Biological Microscope 4 Position

Integrated Dark Field Polarizing Lab Biological Microscope 4 Position
Integrated Dark Field Polarizing Lab Biological Microscope 4 Position Integrated Dark Field Polarizing Lab Biological Microscope 4 Position Integrated Dark Field Polarizing Lab Biological Microscope 4 Position Integrated Dark Field Polarizing Lab Biological Microscope 4 Position Integrated Dark Field Polarizing Lab Biological Microscope 4 Position

Large Image :  Integrated Dark Field Polarizing Lab Biological Microscope 4 Position

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M12140
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Integrated Dark Field Polarizing Lab Biological Microscope 4 Position

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Binocular
Theory: Biological Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Magnification: 40X-1000X
Eyepiece: WF10X/20mm Nosepiece: 4-Position
Objective: 4X, 10X, 40X, 100X Stage: Mechanical Stage
Focusing: Coaxial Coarse And Fine Focusing System Illumination: 3W LED Lamp
High Light:

Dark Field Polarizing Biological Microscope

,

Integrated Lab Biological Microscope

,

4 Position Lab Biological Microscope





Integrated Dark Field Polarizing Fluorescence Phase Contrast Trinocular Biological Microscope 40X-1000X



what is biological microscope



M12140 Integrated Dark Field Polarizing Fluorescence Phase Contrast Trinocular Biological Microscope 40X-1000X. This series microscope has enhanced the performace of illustration system to get clearer image. All the frequently-used functions including dark field, polarizing, fluorescence and phase contrast are integrated. It’s very convenient for the observers to change observing type to get an ideal image.


Features:

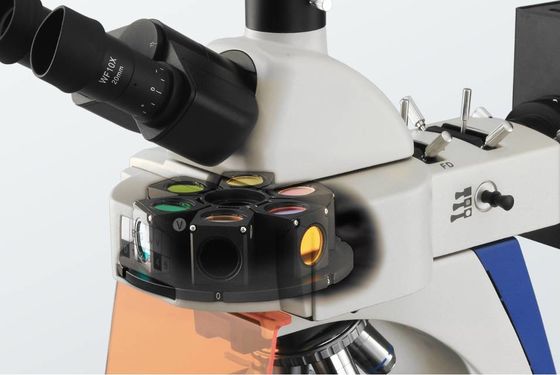

- Six-holes disk fluorescence unit, more fluorescence filters can be supplied.

- Multi-functional, easier to exchange.

- Polarizer, analyzer for simple polarizing unit.

- Wide field eyepiece, view field up to Φ22mm,more comfortable for observation.

- Integrated stage is safer than traditional stage.



Items Description / Value M12140
Eyepiece WF10×/22mm (adjustable) ●●
Infinity Plan Objectives PLAN 4×/0.10 W.D.=12.10mm
PLAN 10×/0.25 W.D.=4.64mm
PLAN 20×/0.40(S) W.D.=2.41mm
PLAN 40×/0.66(S) W.D.=0.65mm
PLAN 100×/1.25(S, Oil) W.D.=0.12mm
PLAN 2.5×/0.07 W.D.=8.47mm
PLAN 60×/0.80(S) W.D.=0.33mm
PLAN 100×/1.15(S, W) W.D.=0.19mm

Infinity Plan
Semi Apochromatic Objective

UPlanFLN 10X/0.30 W.D.=7.68mm
UPlanFLN 20X/0.50 W.D.=1.96mm
UPlanFLN 40X/0.75 W.D.=0.78mm
UPlanFLN 100X /1.30 (Oil) W.D.=0.15mm
Seidentopf Binocular Head Inclined 30°,rotatable 360°, Interpupilary distance:48mm-76mm
Seidentopf Trinocular Head

Inclined 30°, rotatable 360°, Interpupilary distance:48mm-76mm
Light distribution (both): 100: 0 (100% for eyepiece)

80:20(80% for trinocular head and 20% for eyepiece)

Nosepiece Quintuple
Mechanical Stage

Integrated stage

Stage size: 182 mm×140mm,Travel range: 77mm×52mm
Two-slide holder

Swing Out Condenser N.A. 0.9/0.13, Swing out with iris diaphragm.
Koehler Illumination

6V/30W Halogen Lamp

Wide voltage input: 100V~240V

Field diaphragm , center adjustable

LED Illumination

5W LED

Wide voltage input: 100V~240V

Field diaphragm , center adjustable

Filter Blue
Green /Amber /Grey
C-mount 1×/0.5×/0.75×C-mount (focus adjustable
Fluorescence Attachment Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp.
Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), LED fluorescence lamp.
Phase Contrast Unit

Quintuple hole turret

10× /20× /40× /100× phase contrast objective

Independent slot

10× /20× /40× /100× phase contrast objective

Dark Field Unit Dark field condenser (dry),apply to 4×- 40× objective
Dark field condenser (wet),apply to 100× objective
Polarizing Attachment Analyzer / Polarizer

Note: ● means current configuration, ○ means optional

Packing Size: 520mm×475mm×285mm, Gross Weight: 12 kgs, Net Weight: 10 kgs

Size (MM)

Integrated Dark Field Polarizing Lab Biological Microscope 4 Position 0
Integrated Dark Field Polarizing Lab Biological Microscope 4 Position 1
Integrated Dark Field Polarizing Lab Biological Microscope 4 Position 2


Polarizer, analyzer for simple polarizing unit
Integrated Dark Field Polarizing Lab Biological Microscope 4 Position 3

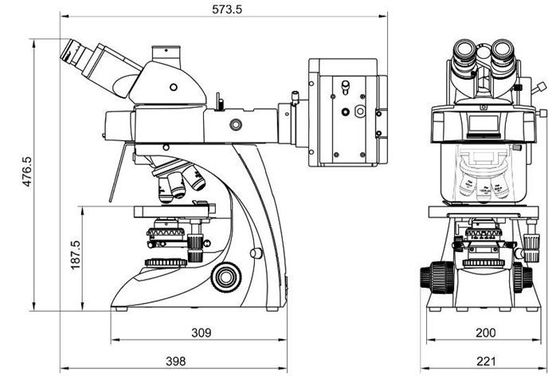

M12140-Series Biological Microscope General Layout Diagram
Integrated Dark Field Polarizing Lab Biological Microscope 4 Position 4

Integrated Dark Field Polarizing Lab Biological Microscope 4 Position 5
