HDMI 60FPS Photosensitive Chip Digital Automatic Edge Patrol

HDMI 60FPS Photosensitive Chip Digital Automatic Edge Patrol
HDMI 60FPS Photosensitive Chip Digital Automatic Edge Patrol HDMI 60FPS Photosensitive Chip Digital Automatic Edge Patrol HDMI 60FPS Photosensitive Chip Digital Automatic Edge Patrol HDMI 60FPS Photosensitive Chip Digital Automatic Edge Patrol HDMI 60FPS Photosensitive Chip Digital Automatic Edge Patrol

Large Image :  HDMI 60FPS Photosensitive Chip Digital Automatic Edge Patrol

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M21128
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

HDMI 60FPS Photosensitive Chip Digital Automatic Edge Patrol

Description
Customization: OEM, ODM Packing: 1 PC/Carton
Warranty: 1 Year Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Theory: Industrial Camera
Target: 1/3 Output Mode: HDMI
Frame Rate: 60FPS Resolution: 1920 X 1080
High Light:

Photosensitive Chip Auto Focus Camera

,

Automatic Edge Patrol Microscope Camera

,

60FPS Microscope Digital Camera



HDMI 60FPS High-sensitivity Photosensitive Chip Digital Camera



how digital camera works

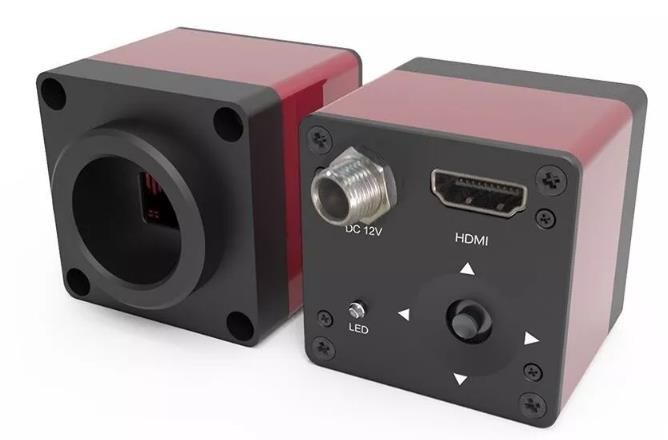

M21128 HDMI 60FPS High-sensitivity Photosensitive Chip Digital Camera. This series digital camera has introduced high-sensitivity photosensitive chip and the latest color enhancement algorithm of image with high speed and low power.



Features:

  • Adopt high-sensitivity photosensitive chip;
  • Apply the latest color enhancement algorithm of image;
  • CNC finish milling of the shell has good texture;
  • Adjust camera parameters through five-way menu navigation keys;
  • Built-in 16 sets of crosshair display;
  • Easy operation, high speed and low power.



Item Description / Value M21128
Interface: HDMI
Maximum Resolution: 1920x1080
Pixel size: 2.75μm x 2.75μm
Target: 1/3”
Data: 12bit
Exposure: Line by line
FPS Output: 60FPS Line by line
Color Output: Colorful

Remarks: ● means standard configuration ○ means optional



HDMI 60FPS Photosensitive Chip Digital Automatic Edge Patrol 0





HDMI 60FPS Photosensitive Chip Digital Automatic Edge Patrol 1





HDMI 60FPS Photosensitive Chip Digital Automatic Edge Patrol 2







HDMI 60FPS Photosensitive Chip Digital Automatic Edge Patrol 3





HDMI 60FPS Photosensitive Chip Digital Automatic Edge Patrol 4
