Product Details:
|
| Customization: | OEM, ODM | Packing: | 1 PC/Carton |
|---|---|---|---|
| Warranty: | 1 Year | Lead-time: | 15-20 Work Days |
| Supply Ability: | 1000 PCS/Month | Theory: | Industrial Camera |
| Target: | 1/1.8 | Output Mode: | USB2.0, USB3.0 |
| Frame Rate: | 60FPS | Resolution: | 4608 X 3288 |
| High Light: | 4608 X 3288 Microscope Digital Camera,USB3.0 Output HD Digital Camera,Microscope Digital Camera Adapter |
||
Digital Camera USB2.0 and USB3.0 from 0.36M to 14M with Maximum Resolution 4608 x 3288
M21133 Digital Camera USB2.0 and USB3.0 from 0.36M to 14M with Maximum Resolution 4608 x 3288. This series digital camera can be widely used in industrial inspection, medical treatment, teaching, public safety and other fields.

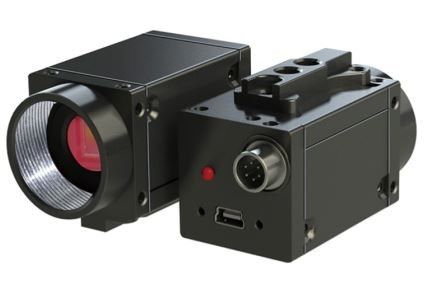

USB2.0 camera Features:

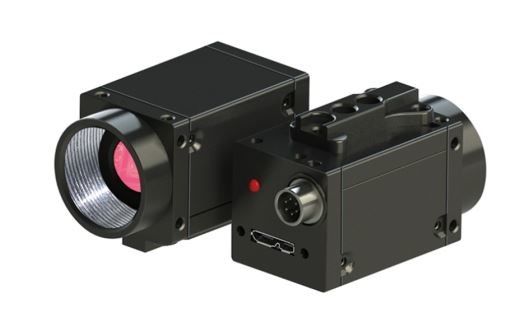

USB3.0 camera Features:
| Model | Interface | Pixel | Resolution | Pixel size | Target | Data | Exposure | FPS Output | Color Output |
| M21133A | USB2.0 | 36 | 752x480 | 6.0μm | 1/3 | 8bit | By frame | 60FPS | Colorful |
| M21133B | USB2.0 | 36 | 752x480 | 6.0μm | 1/3 | 8bit | By frame | 60FPS | Black & White |
| M21133C | USB2.0 | 130 | 1280x1024 | 5.2μm | 1/2 | 8bit | Line by line | 15FPS | Black & White |
| M21133D | USB2.0 | 300 | 2048x1536 | 3.2μm | 1/2 | 8bit | Line by line | 6FPS | Colorful |
| M21133E | USB2.0 | 500 | 2592x1944 | 2.2μm | 1/2.5 | 8bit | Line by line | 35FPS | Colorful |
| M21133F | USB2.0 | 500 | 2592x1944 | 2.2μm | 1/2.5 | 8bit | Line by line | 35FPS | Black & White |
| M21133G | USB2.0 | 120 | 1280x960 | 3.75μm . | 1/3 | 8bit | Line by line | 35FPS | Colorful |
| M21133H | USB2.0 | 120 | 1280x960 | 3.75μm . | 1/3 | 8bit | By frame | 30FPS | Colorful |
| M21133J | USB2.0 | 120 | 1280x960 | 3.75μm . | 1/3 | 8bit | By frame | 30FPS | Black & White |
| M21133K | USB2.0 | 130 | 1280x1024 | 5.2μ m | 1/2 | 8bit | Line by line | 30FPS | Black & White |
| M21133L | USB2.0 | 130 | 1280x1024 | 5.3μ m | 1/1.8 | 10bit | By frame | 30FPS | Black & White |
| M21133M | USB2.0 | 300 | 2048x1536 | 3.2μ m | 1/2 | 8bit | Line by line | 12FPS | Colorful |
| M21133N | USB2.0 | 500 | 2592x1944 | 2.2μm | 1/2.5 | 8bit | Line by line | 7FPS | Colorful |
| M21133P | USB2.0 | 500 | 2592x1944 | 2.2μm | 1/2.5 | 8bit | Line by line | 7FPS | Black & White |
| M21133Q | USB2.0 | 1400 | 4608x3288 | 1.4μm | 1/2.3 | 8bit | Line by line | 3FPS | Colorful |
| M21133R | USB3.0 | 500 | 2592x1944 | 2.2μm | 1/2.5 | 8bit | Line by line | 14FPS | Colorful |
| M21133S | USB3.0 | 500 | 2592x1944 | 2.2μm | 1/2.5 | 8bit | Line by line | 14FPS | Black & White |
| M21133T | USB3.0 | 1400 | 4608x3288 | 1.4μm | 1/2.3 | 8bit | Line by line | 10FPS | Colorful |
