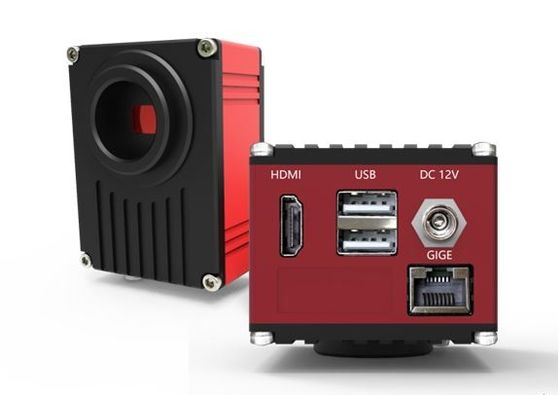

HDMI 60FPS Microscope Digital Camera With Gigabit Network Interface

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

HDMI 60FPS Microscope Digital Camera With Gigabit Network Interface

HDMI 60FPS Microscope Digital Camera With Gigabit Network Interface
HDMI 60FPS Microscope Digital Camera With Gigabit Network Interface HDMI 60FPS Microscope Digital Camera With Gigabit Network Interface HDMI 60FPS Microscope Digital Camera With Gigabit Network Interface HDMI 60FPS Microscope Digital Camera With Gigabit Network Interface HDMI 60FPS Microscope Digital Camera With Gigabit Network Interface

Large Image :  HDMI 60FPS Microscope Digital Camera With Gigabit Network Interface

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M21136
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

HDMI 60FPS Microscope Digital Camera With Gigabit Network Interface

Description
Customization: OEM, ODM Packing: 1 PC/Carton
Warranty: 1 Year Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Theory: Industrial Camera
Target: 1/2 Output Mode: HDMI, Gigabit
Frame Rate: 60FPS Resolution: 1920 X 1080
High Light:

Digital Portable Microscope Camera

,

60FPS USB Microscope Camera

,

Gigabit Interface HDMI Output Camera



Gigabit Network Interface HDMI 60FPS Digital Camera with Built-in Measurement System



M21136 Gigabit Network Interface HDMI 60FPS Digital Camera with Built-in Measurement System. This series digital camera is specially designed with Gigabit network interface, built-in new version V3.0 measurement system, adding: user-defined interface editing, user-defined template editing, Dxf import template, file management, measurement data export and other functions, which make the operation smarter, faster and more powerful.



Features:

  • The new system improves the image clarity again;
  • SONY SENSOR with high sensitivity and low noise, powerful performance and smooth preview;
  • Adopt ARM Cortex A7 dual-core @Max1.3GHz processor, which works smoothly and stably;
  • Built-in video recording and picture shooting functions can be played back;
  • Built-in automatic edge finding function to improve the measurement effect;
  • Support the storage function of U disk, which can be connected with an external mouse;

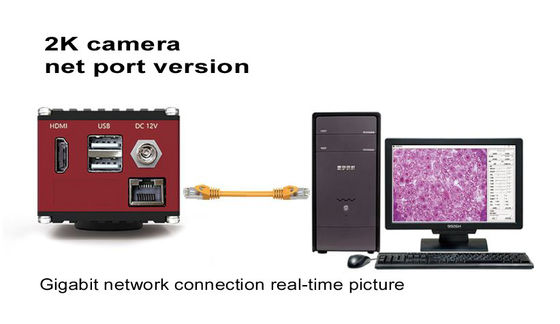

  • Gigabit network interface transmission.



Model Interface Resolution Pixel size Target Data Exposure FPS Output Color Output
M21136 HDMI 1920x1080 3.75μm x3.75μm 1/2 12bit Line by line 60FPS Colorful



HDMI 60FPS Microscope Digital Camera With Gigabit Network Interface 0



HDMI 60FPS Microscope Digital Camera With Gigabit Network Interface 1



HDMI 60FPS Microscope Digital Camera With Gigabit Network Interface 2



HDMI 60FPS Microscope Digital Camera With Gigabit Network Interface 3



HDMI 60FPS Microscope Digital Camera With Gigabit Network Interface 4





HDMI 60FPS Microscope Digital Camera With Gigabit Network Interface 5
