Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M21137
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

USB3.0 Digital HDMI Output Camera With Gigabit Network Interface

Description
Customization: OEM, ODM Packing: 1 PC/Carton
Warranty: 1 Year Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Theory: Industrial Camera
Target: 1/1.8 Output Mode: HDMI, Gigabit,USB3.0x2
Frame Rate: 60FPS Resolution: 3840 X 2160
High Light:

USB3.0 Digital HDMI Output Camera

,

60FPS Microscope HDMI Output Camera

,

Gigabit Interface Digital Network Camera



60FPS Digital Camera with HDMI USB3.0X2 Gigabit Network Interface

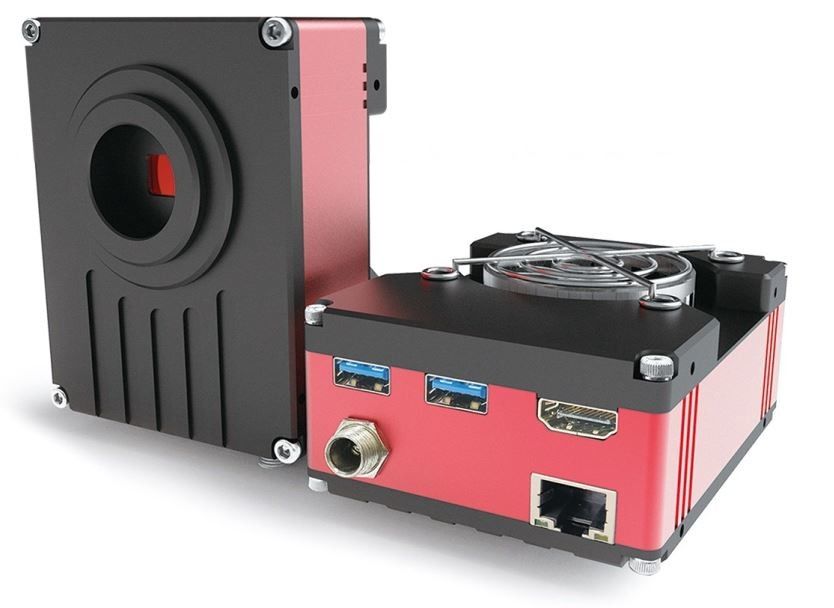

M21137 60FPS Digital Camera with HDMI USB3.0X2 Gigabit Network Interface. This series digital camera is specially designed with HDMI, USB3.0x2, Gigabit network interface, SONY 8 million high-performance photosensitive chips, HDR wide dynamic, automatic edge patrol, automatic exposure and other functions.



Features:

  • Independent adjustment of image color and strong light suppression;
  • The image has true color, low noise and high sensitivity.
  • HDMI interface adapts to 4K and 2K mode switching;
  • Support 4K60 frame and 1080p60 frame plotting;
  • The network port transmits images in real time and interacts in real time;
  • Custom interface editing and custom template editing functions;
  • Image saving supports JPG and BMP formats;
  • Support 4k and 1080p video recording;
  • Dual USB3.0, Gigabit multi-choice interface,
  • The fan can be controlled to turn on and off;
  • The latest image measurement system can export EXCEL data;
  • Increase magnification display function, real-time magnification feedback and screen size feedback.



Item Description / Value M21137
Maximum Resolution: 3840 X 2160
Pixel size: 2.0μmx2.0μm
Target: 1/1.8
Data: 12bit
Exposure: Line by line
Color Output: Colorful
FPS Output: 60FPS
Processor: ARM Cortex A53, 4-Core@Max.1 .4GHz Main Processor
Operation System: Measurement system independently developed based on Linux3.1
Interface: HDMI,USB3.0X2,Gigabit network
Power Supply: DC-12V/1A

Remarks: ● means standard configuration ○ means optional



USB3.0 Digital HDMI Output Camera With Gigabit Network Interface 0



USB3.0 Digital HDMI Output Camera With Gigabit Network Interface 1



USB3.0 Digital HDMI Output Camera With Gigabit Network Interface 2





USB3.0 Digital HDMI Output Camera With Gigabit Network Interface 3
