40X-1000X Lab Biological Microscope Trinocular WF10X 18mm For Upgrading

40X-1000X Lab Biological Microscope Trinocular WF10X 18mm For Upgrading
40X-1000X Lab Biological Microscope Trinocular WF10X 18mm For Upgrading 40X-1000X Lab Biological Microscope Trinocular WF10X 18mm For Upgrading

Large Image :  40X-1000X Lab Biological Microscope Trinocular WF10X 18mm For Upgrading

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M12142
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

40X-1000X Lab Biological Microscope Trinocular WF10X 18mm For Upgrading

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Binocular
Theory: Biological Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Magnification: 40X-1000X
Eyepiece: WF10X/18mm Nosepiece: 4-Position
Viewing Head: 360 Rotatable Stage: Mechanical Stage
Focusing: Coaxial Focusing Knob, Fine Focusing Is Graduated In Increment Of 2um Illumination: 3W LED Lamp
High Light:

40X-1000X Lab Biological Microscope

,

40X Lab Biological Microscope

,

WF10X 18mm trinocular biological microscope



40X-1000X Biological Trinocular Microscope with Various Accessories for Upgrading



M12142 40X-1000X Biological Trinocular Microscope with Various Accessories for Upgrading. This series Microscope has been engineered to deliver exceptional value and performance for clinical and educational applications. The microscope comes equipped with sharp, high contrast achromatic objective and features ergonomic focusing controls, all metal gears and the wide field of view eyepieces in its class. The rugged, die-cast aluminum frame is designed for years of heavy use and is excellent for classroom use.



Features:



- Special design for clinical and educational applications.

- The rugged, die-cast aluminum frame is designed for years of heavy use.

- Diversified accessories for upgrading.



Item Specification M12142A M12142B
Observation Tube: Binocular head inclined at 30°
  Trinocular head inclined at 30°
Interpupillary distance: From 52-75mm
Eyepiece: WF10X/18mm ●● ●●
Objectives: Achromatic 4X, 10X, 40X(spring), 100X(spring, oil)
Stage: Mechanical stage with size 134x130mm, X-Y travel is 77x48mm
Nosepiece: Quadruple Nosepiece
Focusing: Coaxial focusing knob, fine focusing is graduated in increment of 2um
Condenser: N.A. 1.25Abbe condenser with iris diaphragm
Illumination: 3W LED lamp
Power supply: 100-240V
Standard accessories: Dust cover, immersion oil, fuse, power cord
Optional accessories WF10X/20mm eyepiece ○○ ○○
WF10X/18mm pointer eyepiece ○○ ○○
20X achromatic objective
60X achromatic objective
C-mount adapter
digital camera adapter
digital camera eyepiece

Note: ● means current configuration, ○ means optional



40X-1000X Lab Biological Microscope Trinocular WF10X 18mm For Upgrading 0    40X-1000X Lab Biological Microscope Trinocular WF10X 18mm For Upgrading 1

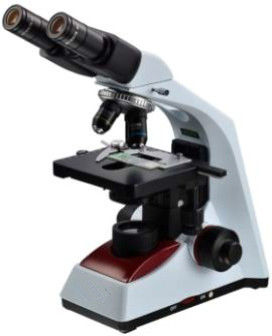

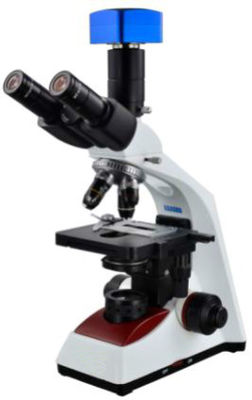

                     M12142A                                          M12142B
