C Mount Microscope Usb 3.0 Cmos Camera Hardware ISP Video Pipeline Resolutions

C Mount Microscope Usb 3.0 Cmos Camera Hardware ISP Video Pipeline Resolutions
C Mount Microscope Usb 3.0 Cmos Camera Hardware ISP Video Pipeline Resolutions C Mount Microscope Usb 3.0 Cmos Camera Hardware ISP Video Pipeline Resolutions C Mount Microscope Usb 3.0 Cmos Camera Hardware ISP Video Pipeline Resolutions

Large Image :  C Mount Microscope Usb 3.0 Cmos Camera Hardware ISP Video Pipeline Resolutions

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M21144
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

C Mount Microscope Usb 3.0 Cmos Camera Hardware ISP Video Pipeline Resolutions

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Lead-time: 15-20 Work Days
Exposure: 0.1ms-15s Resolution: 3072x2048
Application: For Microscopes Pixel: 6.3M
Target: 1/1.8“ Frame Rate: 38FPS@1536x 1024
Data Interface: USB3.0 Color Output: Colorful
High Light:

C Mount usb 3.0 cmos camera

,

Hardware ISP usb 3.0 cmos camera

,

Video Pipeline Resolutions microscope cmos camera



C-mount USB3.0 CMOS Camera with Hardware ISP and Video Pipeline Resolutions Range From 1.5M to 45M



M21144 C-mount USB3.0 CMOS Camera with Hardware ISP and Video Pipeline Resolutions Range From 1.5M to 45M. M21144 series adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface. M21144 series hardware resolutions range from 1.5M to 45M and come with the integrated CNC aluminum alloy compact housing. M21144 series integrated with 12 bit Ultra-Fine Hardware Image Signal Processor Video Pipeline(Ultra-Fine HISP VP) for Demosaic, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavier burden of the processing from the PC to the Ultra-Fine HISP VP and greatly accelerating the processing speed. M21144 series comes with advanced video & image processing application ToupView/ToupLite; Providing Windows/ Linux/ macOS /Android multiple platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.). The M21144 series can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.



Features:

- SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface.

- Real-time 8/12bit depth switch(depending on sensor).

- Ultra-Fine HISP VP and USB3.0 5 Gbps interface ensuring high frame rates.

- Super high sensitivity up to 2188mV(IMX264).

- Ultra-low noise and low power dissipation by using column-parallel A/D conversion.

- With hardware resolution among 1.5M to 45M.

- Rolling shutter or global shutter.

- Standard C-Mount camera.

- CNC aluminum alloy housing.

- With advanced video & image processing application ToupView/ToupLite.

- Providing Windows/Linux/Mac OS multiple platforms SDK.

- Native C/C++, C#/VB.Net, DirectShow, Twain, LabView.



Item Specification
Sensor & Size: 6.3M/IMX178(C), 1/1.8“ (7.37x4.92)
Pixel: 2.4x2.4μm
G Sensitivity Dark Signal:

425mv with 1/30s

0.15mv with 1/30s

FPS/Resolution:

30FPS@3072 x2048
38FPS@1536x 1024

@8 or 12bit

Binning: 1x1, 2x2
Exposure: 0.1ms-15s
Spectral Range: 380-650nm (with IR-cut Filter)
White Balance: ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color Technique: Ultra-Fine HISPVP /NA for Monochromatic Sensor
Capture/Control SDK: Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.)
Recording System: Still Picture and Movie
Cooling System: Natural
Operating Temperature(in Centigrade): -10~ 50℃
Storage Temperature(in Centigrade): -20~ 60℃
Operating Humidity: 30~80%RH
Storage Humidity: 10~60%RH
Power Supply: DC 5V over PC USB3.0 Port. Compatible with USB2.0
Operating System:

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements:

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB Port: USB3.0 High-speed Port

Display: 17” or Larger

CD-ROM

  • Remarks: this series USB3.0 CMOS Camera has a hardware resolutions range from 1.5M to 45M.
Item Sensor & Size(mm) Pixel(μm) G Sensitivity    Dark Signal FPS/Resolution Binning Exposure
M21144A 21M/IMX269 (C)
4/3 “(17.4x13.0)
3.3 x3.3 399mv with 1/30s
0.1mv with 1/30s

17@5280x3954

17@3952x3952

56@2640x1976

67@1760x1316

192@584x438

1x1

1x1

2x2

3x3

9x9

0.1ms~15s
M21144B 20M/IMX183(C)
1 “(13.06x8.76)
2.4 x2.4 462mv with 1/30s
0.21mv with 1/30s

15@5440x3648

50@2736x1824

60@1824x1216

1x1
2x2

3x3

0.1ms~15s
M21144C 18M/SONY Special(C)
1/2.2 “(5.86x4.46)
1.2 x1.2 130mv with 1/30s
0.1mv with 1/30s

17@4880x3720

40@2448x1836

50@1728x1296

1x1

2x2

3x3

0.1ms~15s
M21144D 15.6M/SONY Special (C)
1.1 “(13.0x13.0)
3.3 x3.3 399mv with 1/30s
0.1mv with 1/30s

17@3952x3952

56@1976x1976

67@1316x1316

1x1

2x2

3x3

0.1ms~15s
M21144E

12.3M/IMX304(C, GS)

1.1”(14.13x10.35)

3.45x3.45 1146mv with 1/30s
0.1mv with 1/30s

23.4@4096x3000

46.3@2048x1500

1x1

1x1

0.244ms~15s
M21144F 12M/IMX226(C)
1/1.7“(7.40x5.55)
1.85x1.85 280mv with 1/30s
0.1mv with 1/30s
25@4000x3000
50@2048x1080

1x1

2x2

0.1ms~15s
M21144G 9.0M/IMX305(C, GS)
1“ (14.13x7.45)
3.45x3.45 1146mv with 1/30s
0.15mv with 1/30s
34@4096x2160
60@2048x1080

1x1

1x1

0.1ms~15s
M21144H 9.0M/IMX533(C)
1“ (11.31x11.28)
3.76x3.76 535mv with 1/30s
0.04mv with 1/30s

40@3008x3000
123@1488x1500

186@992x998

1x1

2x2

3x3

0.1ms~15s
M21144J

8.3M/IMX274(C)

1/2.5”(6.22x3.50)

1.62x1.62 236mv with 1/30s
0.1mv with 1/30s

32@3840x2160

65@1920x1080

1x1

2x2

0.244ms~15s
M21144K

8.3M/IMX334(C)

1/1.8”(7.68x4.32)

2.0x2.0 505mv with 1/30s
0.1mv with 1/30s

35@3840x2160

60@1920x1080

1x1

2x2

0.02ms~15s
M21144L

8.3M/IMX485(C)

1/1.2”(11.14x6.26)

2.9x2.9 2188mv with 1/30s
0.15mv with 1/30s

45@3840x2160

70@1920x1080

1x1

2x2

0.02ms~15s
M21144M 6.3M/IMX178(C)
1/1.8“ (7.37x4.92)
2.4x2.4 425mv with 1/30s
0.15mv with 1/30s

30@3072 x2048
38@1536x 1024

@8 or 12bit

1x1

2x2

0.1ms~15s
M21144N 6.3M/IMX178(C)
1/1.8“ (7.37x4.92)
2.4x2.4 425mv with 1/30s
0.15mv with 1/30s
59@3072 x2048
59@1536x 1024
@8 or10 bit

1x1

2x2

0.02ms~15s
M21144P 5.0M/IMX264(C, GS)
2/3” (8.45x7.07)
3.45x3.45 1146mv with 1/30s
0.15mv with 1/30s

35@2448x2048

50@1224x1024

1x1
1x1
0.1ms~15s
M21144Q 3.1M/IMX265(C, GS)
1/1.8“ (7.07x5.30)
3.45x3.45 1146mv with 1/30s
0.15mv with 1/30s

53@2048x1536

85@1024x768

1x1

1x1

0.1ms~15s
M21144R 3.1M/IMX123(C)
1/2.8“ (5.12x3.84)
2.5x2.5 600mv with 1/30s
0.15mv with 1/30s

50@2048x1536

50@1920x1080

1x1
1x1
0.1ms~15s
M21144S 2M/IMX385(C)
1/2“ (7.2x4.05)
3.75x3.75 2350mv with 1/30s
0.15mv with 1/30s
125@1920x1080 1x1 0.1ms~15s
M21144T 1.5M/IMX273(C, GS)
1/2.9“ (4.968x3.726)
3.45x3.45 1146mv with 1/30s
0.15mv with 1/30s

164@1440x1080

320@720x540

1x1

2x2

0.1ms~15s
M21144U 45M/SONY Special(C)
1.4“ (18.93x13.00)
2.315x2.315 419mv with 1/30s
0.03mv with 1/30s

8.1@8176x5616
30.0@4088x2808

8.1@7408x5556
33.0@4088x2808

10.4@8176x4320

34.7@4096x2160

62.5@2048x1080

86.5@1360x720

1x1(3:2)

2x2(3:2)

1x1(4:3)

2x2(4:3)

1x1(17:9)

2x2(17:9)

3x3(17:9)

4x4(17:9)

0.1ms~15s
M21144V 32M/SONY Special(C)
1.15“ (12.96x12.96)
2.315x2.315 419mv with 1/30s
0.03mv with 1/30s

8.1@5600x5600
30.0@2800x2800

30.0@1400x1400

1x1

2x2

4x4

0.1ms~15s
M21144W 8.0M/IMX294(C)
1.15 “(13.00x13.00)
4.63 x4.63 419mv with 1/30s
0.12mv with 1/30s

30@2808x2808(14bit)

139@1392x1392

139@696x696

1x1

2x2

4x4

0.1ms~15s
M21144X

2.1M/IMX482(C)

1/1.2”(11.14x6.26)

5.8x5.8 8935mv with 1/30s
0.6mv with 1/30s
96@1920x1080 1x1 14us~15s
M21144Y 20M/IMX183(C)
1 “(13.06x8.76)
2.4 x2.4 462mv with 1/30s
0.21mv with 1/30s

20@5440x3648

48@2736x1824

58@1824x1216

1x1
2x2

3x3

0.1ms~15s

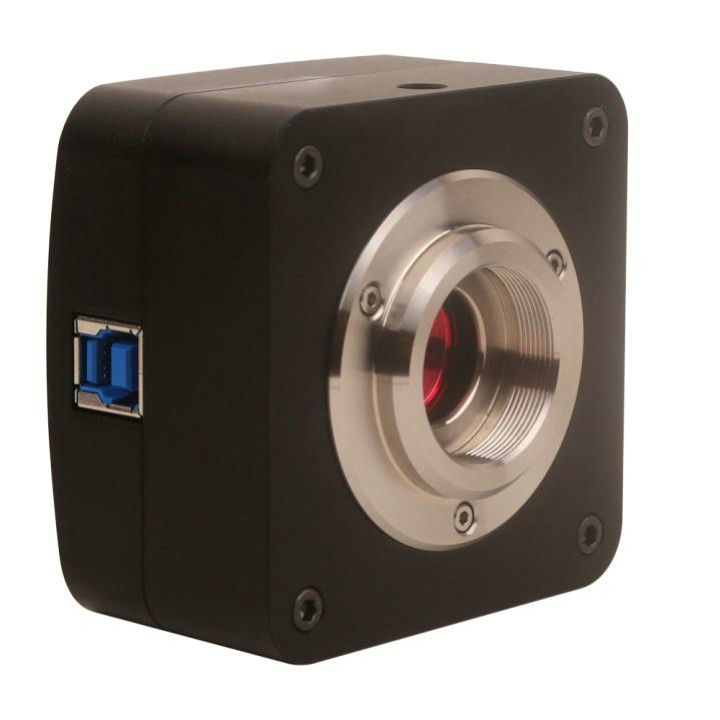

C Mount Microscope Usb 3.0 Cmos Camera Hardware ISP Video Pipeline Resolutions 0

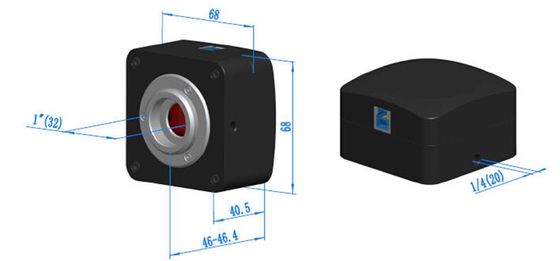

C Mount Microscope Usb 3.0 Cmos Camera Hardware ISP Video Pipeline Resolutions 1

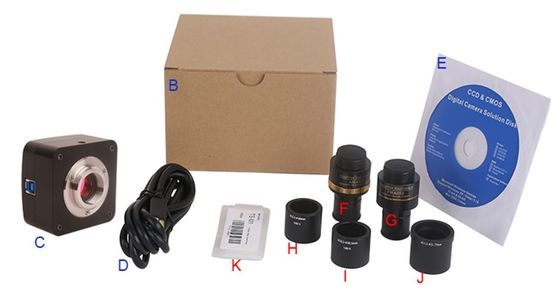

C Mount Microscope Usb 3.0 Cmos Camera Hardware ISP Video Pipeline Resolutions 2
