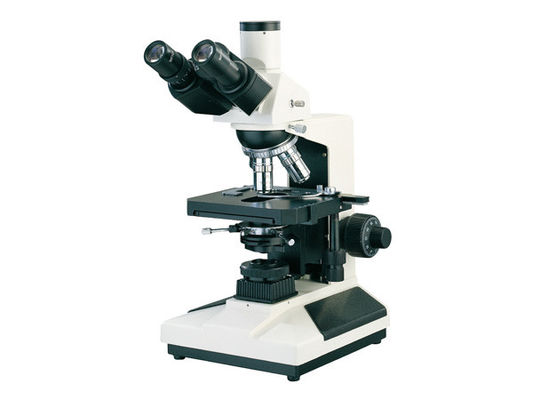

Agriculture 1000X Trinocular Microscope With Camera Medicine Cell Biology Microscope

Agriculture 1000X Trinocular Microscope With Camera Medicine Cell Biology Microscope
Agriculture 1000X Trinocular Microscope With Camera Medicine Cell Biology Microscope

Large Image :  Agriculture 1000X Trinocular Microscope With Camera Medicine Cell Biology Microscope

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M12143
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Agriculture 1000X Trinocular Microscope With Camera Medicine Cell Biology Microscope

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Trinocular
Theory: Biological Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Magnification: 40X-1000X
Eyepiece: WF10X/20mm Nosepiece: 4-Position
Viewing Head: 360 Rotatable Stage: Mechanical Stage
Focusing: Coaxial Focusing Knob, Fine Focusing Is Graduated In Increment Of 2um Illumination: 6V20W Halogen Lamp
High Light:

Agriculture trinocular microscope with camera

,

Medicine trinocular microscope with camera

,

1000X cell biology microscope



Trinocular Microscope Used in Biology Medicine Agriculture and Industry Area Widely with Various Accessories for Upgrading



M12143 biological microscopes are equipped with plan achromatic objectives and wide field eyepieces. They provide clear image, wide field, convenience operation. They can be used for biology medicine agriculture and industry area widely. They are the ideal instrument in medical treatment, teaching demonstration and scientific research.



Features:



  • With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear;
  • Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm;
  • Using Kohler illumination with 6 Volt 20 Watt Halogen lamps with brightness control.



Items Specification M12143A M12143B
Eyepiece Wide field WF10X(20mm)
Wide field WF16X(11mm)
Dividing 10X(18mm),0.1mm/Div
Objective Plan achromatic PL 4X/0.10
Plan achromatic PL 10X/0.25
Plan achromatic PL 20X/0.40
Plan achromatic PL 40X/0.65(Spring)
Plan achromatic PL 100X/1.25(Spring, oil)
Eyepiece tube Binocular(Inclination of 30˚)
Trinocular (Inclination of 30˚)
Focus system Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.
Nosepiece Quadruple(Backward ball bearing inner locating)
Quintuple(Backward ball bearing inner locating)
Stage Double layer mechanical (Size:160mmX140mm, Move range: 75mmX50mm)
Abbe condenser N.A.1.25 Rack & pinion adjustable
  Dark field, Dry
  Dark field, Immersion
Filter Blue filter, Frosted filter
Green filter
Yellow filter
Collector For halogen lamp
Light source 6V 30W Halogen lamp with brightness control
Phase contrast unit Eyepiece, Centering telescope
Objectives, Phase contrast plan achromatic 10X/0.25 PHP
Objectives, Phase contrast plan achromatic 20X/0.40 PHP(Spring)
Objectives, Phase contrast plan achromatic 40X/0.65 PHP(Spring)
Objectives, Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
(PH-¢ñ) Turnplate phase contrast condenser
(PH-¢ò) Turnplate phase contrast condenser
Flashboard phase contrast condenser
Pull board phase contrast condenser
Infinity optical system Eyepiece tube, Binocular (Inclination of 30˚)
Eyepiece tube, Trinocular (Inclination of 30˚)
Eyepiece, Centering telescope
Objectives, Infinity plan achromatic 4X/0.10
Objectives, Infinity plan achromatic 10X/0.25
Objectives, Infinity plan achromatic 20X/0.40
Objectives, Infinity plan achromatic 40X/0.65(Spring)
Objectives, Infinity plan achromatic 100X/1.25(Spring, oil)
Objectives, Infinity phase contrast plan achromatic 10X/0.25 PHP
Objectives, Infinity phase contrast plan achromatic 20X/0.40 PHP
Objectives, Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)
Objectives, Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, Oil)
CCD adapter 0.4X
0.5X
1X
0.5X with dividing 0.1mm/Div
Camera DV-1(With USB & video output)
DV-2(With USB output)
DV-3(With video output)
Digital camera adapter CANON Digital camera adapter(A610,A620,A630,A640)
Photograph unit 2.5X/4X Change over photograph attachment with 10X viewing eyepiece

Notes: ● means standard, ○ means optional
