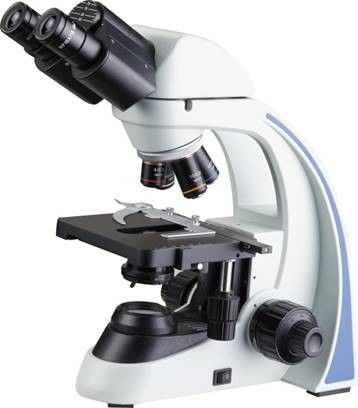

Magnification 1600X Lab Biological Microscope WF10X 18mm Living Blood Cell Analysis

Magnification 1600X Lab Biological Microscope WF10X 18mm Living Blood Cell Analysis
Magnification 1600X Lab Biological Microscope WF10X 18mm Living Blood Cell Analysis

Large Image :  Magnification 1600X Lab Biological Microscope WF10X 18mm Living Blood Cell Analysis

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M12144
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Magnification 1600X Lab Biological Microscope WF10X 18mm Living Blood Cell Analysis

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Binocular Theory: Biological Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Optical System: Plan Achromatic Optical System Magnification: 40X-1600X
Eyepiece: WF10X/18mm Objective: Plan Achromatic 4X, 10X, 40X, 100X
Nosepiece: Quadruple Nosepiece Focusing: Coaxial Coarse And Fine Focusing
Illumination: 3W LED Application: Laboratory, Hospital & Clinic, University Lab
High Light:

Magnification 1600X Lab Biological Microscope

,

WF10X 18mm Cell Lab Biological Microscope

,

40X Living Blood Cell Binocular Microscope

Binocular Microscope For Living Blood Cell And Dead Blood Cell Analysis



M12144 is very easy to use with high quality performance which is an ideal choice for basic research and teaching experiments.



Features:

- Portable for easy use in different places, well anti-shake design.

- LED cold light, comfortable to adjust the brightness based on environmental changes.

- The tube can rotate by 360 degrees. It’s permitted the researchers to observe from different directions.

- Ergonomics designed rigid frame, with handle for carry.

- All metal material with cover, anti-fungi, anti-bacteria.

- Competent for research lab, hospital and clinic, school lab.



Item Description / Value M12144
Optical system: Plan achromatic optical system.
Observation method: Bright field.
View tube: Binocular head, 30 ° inclining, 360°rotating.
Diopter adjustment on the left eyepiece.
Adjustment of interpupillary distance 50-75mm.
Eyepiece: Wide field WF10X /18mm.
  Optional WF16X
Objective: Plan Achromatic Plan 4X/0.10, 10X/0.25, 40X/0.65(Spring loaded), 100X/1.25(Spring loaded and oil immersion).
Nosepiece: Quadruple reversed angle nosepiece, revolver with rotation on ball bearings.
Illumination: White LED lamp illuminator. LED power: 3W, Color temperature: 6300K.
Focusing mechanism: Coaxial positioning system. Movement by roller guider (Roller and pinion).
Rubber grip around fine and coarse adjust knob.
Tension adjustment of coarse regulation knob.
Upper limit stopper for protecting the lens and sample.
Stage: Mechanical double layer stage, platinum with overhang, dimensions 155x145 mm.
Moving range: 76mm ×52mm.
Vernier scale on both axes of movement with an accuracy of 0.1mm.
Condenser: Removable Abbe condenser, NA1.25 with aperture iris diaphragm.
Body: Ergonomics designed rigid frame. With handle for carry. All metal material with cover. Anti-fungi, anti-bacteria.
Accessories: Manual, dust cover, power cord of local standard.
Package: 48.5*30.5*55.5CM, 7kg
Power supply: AC100-240V, 50/60Hz

Note: ● means standard, ○ means optional
