Product Details:
|
| Customization: | OEM, ODM | Lead-time: | 15-20 Work Days |
|---|---|---|---|
| Supply Ability: | 1000 PCS/Month | Packing: | 1 PC/Carton |
| Warranty: | 1 Year | Drawtube: | Monocular |
| Theory: | Video Microscope | Screen Size: | 8 Inches |
| High Light: | LCD Lab Biological Microscope,8 Inches Lab Biological Microscope,CT microscope video camera |
||

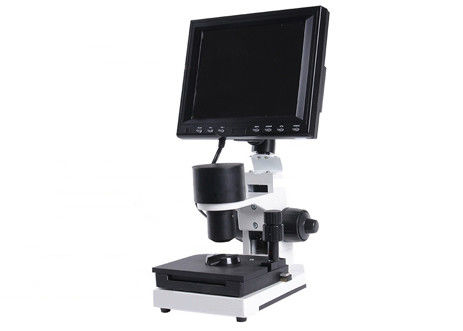

Video Biological Color Circulation Capillary Microscope
M12102 Video Biological Capillary Microscope The main method to observe the micro circulation at present is to use metal defect meter, but CT, the magnetic resonance, X light, B high grade cannot be used. The micro circulation is a domain joining multi-disciplinary studies together. The issues of micro circulation research is various. Firstly, it’s the micro circulation reciprocity in the blood vessel, including the blood flow rule and the vessel wall. Secondly, various internal organs and tissues have different micro circulation characteristics and special functions. Thirdly, if disease occurs during the micro circulation changes, the judgement condition, determination treatment policy etc. will change accordingly. So a video biological capillary microscope will be very important instrument to be introduced.
Features:
- To get the result in 5 seconds in the microvascular circulation, easy and fast.
- The microscopic image is stable and clear.
- 400 times, the micro circulation of a dedicated high-resolution lens of the microscope.
- Handheld ultra-lightweight design to make the observation more mobile.
- To adjust the focus length freely with micro-focus wheel, more convenient.
- Lens built-in LED cold light source, accurate projection illumination on the object.
- Using non-invasive way to observe the microcirculation of human body in time.
- Observing the microcirculation for any part of human body.
| Item | Description / Value |
| Magnification: | ≥400 times |
| Built-in camera pixels: | 380000 pixels |
| Light source: | LED |
| Brightness: | ≥ 600cd/m2 |
| Stage: | X-Y double layer compound mechanical stage |
| Nail-fold microcirculation microscope monitor: | Color LCD monitor 8inch(4:3) |
| Input & output: | AC input 100~240V 50/60Hz DC output DC12V,2A |
| Size of the package: | 34*29*20cm |
| Gross weight: | 7.00kg |
