Compound LCD Microscope For Living Blood Cell And Dead Blood Cell Analysis

Compound LCD Microscope For Living Blood Cell And Dead Blood Cell Analysis
Compound LCD Microscope For Living Blood Cell And Dead Blood Cell Analysis Compound LCD Microscope For Living Blood Cell And Dead Blood Cell Analysis

Large Image :  Compound LCD Microscope For Living Blood Cell And Dead Blood Cell Analysis

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M12109
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Compound LCD Microscope For Living Blood Cell And Dead Blood Cell Analysis

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Biological Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Optical System: Plan Achromatic Optical System Magnification: 40X-1600X
Eyepiece: WF10X/18mm Objective: Plan Achromatic 4X, 10X, 40X, 100X
Nosepiece: Quadruple Nosepiece Focusing: Coaxial Coarse And Fine Focusing
Illumination: 3W LED Application: Laboratory, Hospital & Clinic, University Lab
High Light:

Trinocular digital light microscope

,

1000X digital light microscope

,

WF10X/18mm laboratory biological microscope



Compound LCD Microscope For Living Blood Cell And Dead Blood Cell Analysis

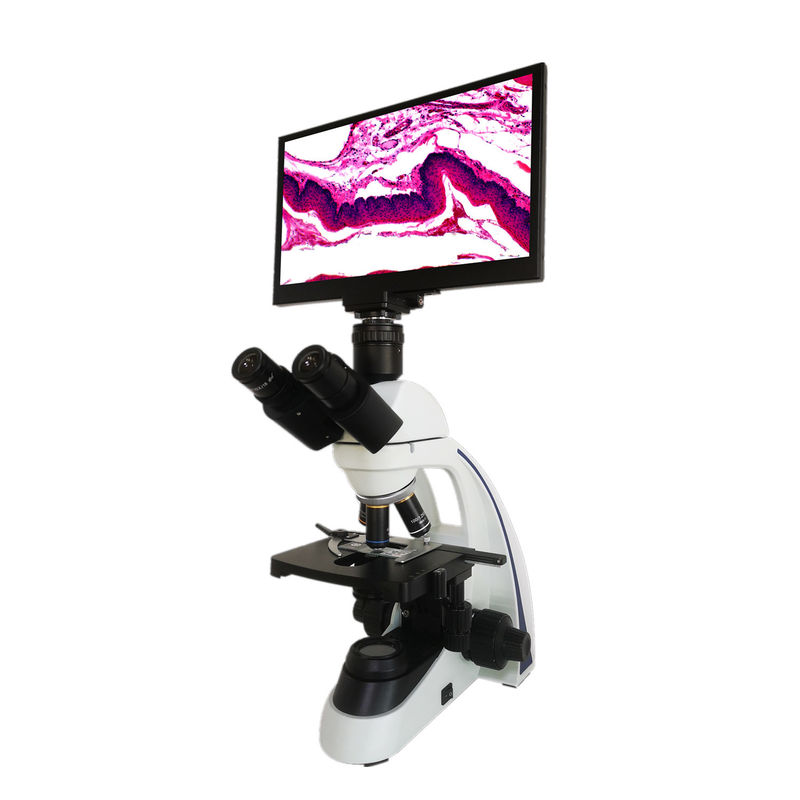

M12109 Compound LCD Microscope For Living Blood Cell And Dead Blood Cell Analysis The product is very easy to use with high quality performance which is an ideal choice for basic research and teaching experiments.



Features:

- Portable for easy use in different places, well anti-shake design.

- LED cold light, comfortable to adjust the brightness based on environmental changes.

- The tube can rotate by 360 degrees. It’s permitted the researchers to observe from different directions.

- Ergonomics designed rigid frame, with handle for carry.

- All metal material with cover, anti-fungi, anti-bacteria.

- Competent for research lab, hospital and clinic, school lab.

- With LCD.



Item Description / Value M12109
Optical system: Plan achromatic optical system.
Observation method: Bright field.
View tube: Binocular/Trinocular head, 30 ° inclining, 360°rotating.
Diopter adjustment on the left eyepiece.
Adjustment of interpupillary distance 50-75mm.
Eyepiece: Wide field WF10X /18mm.
  Optional WF16X.
Objective: Plan Achromatic Plan 4X/0.10, 10X/0.25, 40X/0.65(Spring loaded), 100X/1.25(Spring loaded and oil immersion).
Nosepiece: Quadruple reversed angle nosepiece, revolver with rotation on ball bearings.
Illumination: White LED lamp illuminator. LED power: 3W, Color temperature: 6300K.
Focusing mechanism: Coaxial positioning system. Movement by roller guider (Roller and pinion).
Rubber grip around fine and coarse adjust knob.
Tension adjustment of coarse regulation knob.
Upper limit stopper for protecting the lens and sample.
Stage: Mechanical double layer stage, platinum with overhang, dimensions 155x145 mm.
Moving range: 76mm ×52mm.
Vernier scale on both axes of movement with an accuracy of 0.1mm.
Condenser: Removable Abbe condenser, NA1.25 with aperture iris diaphragm.
Body: Ergonomics designed rigid frame. With handle for carry. All metal material with cover. Anti-fungi, anti-bacteria.
Accessories: Manual, dust cover, power cord of local standard.
Package: 48.5*30.5*55.5CM, 7kg
Power supply: AC100-240V, 50/60Hz
Screen: 12” Touchpad screen.
  13” LCD screen.

Note: ● means standard, ○ means optional
