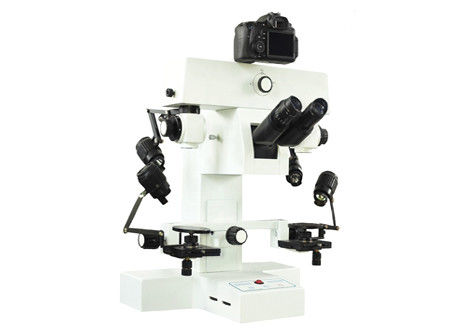

Investigation 192X Forensic Comparison Microscope 3.0M Digital Camera

Investigation 192X Forensic Comparison Microscope 3.0M Digital Camera
Investigation 192X Forensic Comparison Microscope 3.0M Digital Camera

Large Image :  Investigation 192X Forensic Comparison Microscope 3.0M Digital Camera

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M16103
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Investigation 192X Forensic Comparison Microscope 3.0M Digital Camera

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Head: Binocular
Theory: Comparison Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Eyepiece: WF10X/22mm, WF20X/12mm
Objective: 0.8X,1.25X,2X,3.2X,4.8X Auxiliary Lens: 0.4X, 2.0X
Camera: 3.0M Digital Adapter: 0.5X C-Mount
High Light:

Investigation Forensic Comparison Microscope

,

192X Forensic Comparison Microscope

,

3.0M digital camera microscope



3.0M Digital Camera Comparison Microscope Max 192X For Criminal Investigation



M16103 3.0M Digital Camera Comparison Microscope Max 192X For Criminal Investigation. M16103 comparison microscope is mainly used for criminal investigation.



Features:



- Visual HD image, static data acquisition.

- Widely used in the field of judicial identification.



Item Description / Value
Head: Binocular 0°-45° Adjustable, 48-75mm
Magnification: 3.2X-192X
Eyepiece: High eye level WF10X/22mm, WF20X/12mm
Objective: Step Zoom Lens 0.8X, 1.25X, 2X, 3.2X, 4.8X
Auxiliary Lens: 0.4X, 2.0X
Light source:

5W LED+12V/50W Halogen

Coaxial Light

Polarizing Light

UV Filter

Filter Red/Blue/Yellow/Green

Stage:

*Moving Range: X-54mm, Y-54mm, Z-54mm, 0°-45° Inclination Adjustable;

*Motorzied Focusing, Left+Right Up/Down At Same Time, Joint Left/Right Moving Range 62mm, Joint Up/Down Range 62mm;

*Round Stage, 360° Rotating;

* Holder 2 Sets.

View Field: Full Left, Full Right, Split Image, Overlapping Image, 2mm-60mm
Camera: 3.0M Digital Camera
Adapter:

0.5x C-Mount

Photo Adapter For Cannon SLR

Function Panel: Touch Type, User-Friendly Design, Easy To Operate And Accurate
Power: Power Supply 80-240V
