Forensic Lcd Digital Microscope Pad 240X Trinocular Compound Microscope

Forensic Lcd Digital Microscope Pad 240X Trinocular Compound Microscope
Forensic Lcd Digital Microscope Pad 240X Trinocular Compound Microscope

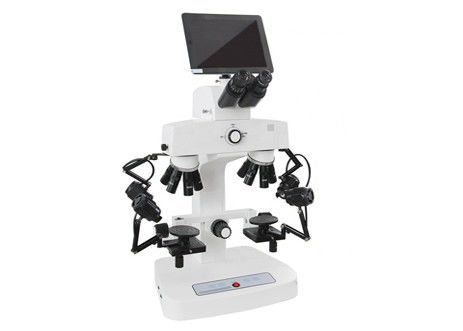

Large Image :  Forensic Lcd Digital Microscope Pad 240X Trinocular Compound Microscope

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M16104
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Forensic Lcd Digital Microscope Pad 240X Trinocular Compound Microscope

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Head: Trinocular
Theory: Comparison Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Eyepiece: WF10X/22mm, WF20X/12mm
Objective: 0.5X, 1X, 1.5X, 2X, 4X, 6X Auxiliary Lens: 0.4X, 2.0X
Camera: 3.0M Digital Adapter: 0.5X C-Mount
LCD: 9.7'' Nosepiece: 6-Position
Working Distance: 101mm View Field: 2.3~62mm
High Light:

Forensic lcd digital microscope

,

240X lcd digital microscope

,

Pad trinocular compound microscope



2X~240X Forensic Comparison Microscope With 9.7'' LCD Pad Digital Camera



M16104 2X~240X Forensic Comparison Microscope With 9.7'' LCD Pad Digital Camera. M16104 comparison microscope has 9.7'' LCD pad digital camera, which is very convenient for the observers to compare the different photos directly. The mainly application of this product is for criminal investigation.



Features:



- With correcting lens for magnification correcting system.

- Large binocular head, both eyepiece tube diopter +/-5 adjustable.

- Widely used in the field of judicial identification.



Item Description / Value
Head: Binocular 0°-45° Adjustable, 48-75mm, Diopter +/-5 Adjustable
Magnification: 2X~240X
Eyepiece: High eye level WF10X/22mm, WF20X/12mm
Objective: LWD Infinity Plan Achromatic Objective 0.5X, 1X, 1.5X, 2X, 4X, 6X; Auxiliary Lens 0.4X, 2.0X
Auxiliary Lens: 0.4X, 2.0X
Nosepiece: 6-Position
Working distance: 101mm
View Field: 2.3~62mm
Magnification Correcting: Magnification Correction System, With Correcting Lens
Stage:

*Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm;

*Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable;

*Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm;

Light source:

*12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable, 2pcs;

*5W LED Cold Light, High Brightness, Brightness Adjustable, 2pcs;

*Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface, 2pcs;

*Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights, 2pcs;

*Ultraviolet Light Lens, 2pcs;

*Filters: Red, Blue, Yellow, Green, 2pcs Each Color;

View Field: Full Left, Full Right, Split Image, Overlapping Image, 2mm-60mm
Camera: Built-in 3.0M High Resolution Color CCD Camera,USB 2.0 Output,2048*1536 Pixels,Pixel Size 3.2*3.2μm
Adapter:

0.5x CCD Adapter For Digital Camera,1pc;

Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon);

Bullet Holder: Standard Bullet Holder 2 Sets,Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects
Power: Power Supply 80-240V
