1000x Biological Binocular Microscope With 20mm Eyepiece

1000x Biological Binocular Microscope With 20mm Eyepiece
1000x Biological Binocular Microscope With 20mm Eyepiece 1000x Biological Binocular Microscope With 20mm Eyepiece 1000x Biological Binocular Microscope With 20mm Eyepiece

Large Image :  1000x Biological Binocular Microscope With 20mm Eyepiece

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M12137
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

1000x Biological Binocular Microscope With 20mm Eyepiece

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Binocular
Theory: Biological Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Magnification: 40X-1000X
Eyepiece: WF10X/20mm Nosepiece: 4-Position
Objective: 4X, 10X, 40X, 100X Stage: Mechanical Stage
Focusing: Coaxial Coarse And Fine Focusing System Illumination: 3W LED Lamp
High Light:

1000x Biological Binocular Microscope

,

20mm Eyepiece Biological Binocular Microscope

,

Polarizing Biological Binocular Microscope



40X-1000X Binocular Biological Microscope Upgradable to Digital version of IPAD or Notebook PC



how to use a biological microscope



M12137 40X-1000X Binocular Biological Microscope Upgradable to Digital version of IPAD or Notebook PC. This series could be upgraded to digital version, which means that observing by IPAD and notebook PC is available. It will be very convenient for the observers to get a bigger image and easier to see more details.



Features:



- Easier to upgrade to observe by IPAD and notebook PC.

- The maxium magnification is 1600X by the eyepieces WF 16X /13 mm.

- It has optional parts for Dark field and Polarizing use.

- Easy to move and keeping.

- Low position operation, convenient for long-term using.



Items Description / Value M12137
Main Body
Eyepiece WF10X/20mm (High eyepoint) ●●
Infinity Objective EPLAN 4X/0.10
EPLAN 10X/0.25
EPLAN 40X/0.65(S)
EPLAN 100X/1.25(S,Oil)
PLAN 4X/0.10
PLAN 10X/0.25
PLAN 20X/0.40(S)
PLAN 40X/0.66(S)
PLAN 60X/0.80(S)
PLAN 100X/1.25(S,Oil)
PLAN 100X/1.15(S,Water)

Butterfly

Head

Seidentopf Binocular Head, Inclined 30°,Rotatable 360°,

Interpupilary Distance: 48-75mm

Seidentopf Trinocular Head, Inclined 30°,Rotatable 360°,

Interpupilary Distance: 48-75mm

Light Distribution: 20:80

5 MP Pixel Digital Head

1/2’’CMOS color sequential scanning. USB2.0

Light Distribution: 20:80

Nosepiece Quadplex
Mechanical Stage Size 145mmX140mm, Travel Range:76mmX52mm, Scale: 0.1mm, Two Slide Holder

Rackless(Integrated) stage,

Size: 140×135mm,Travel Range: 75×35mm,

Two-slide holder

Abbe Condenser N.A.1.25,With iris Diaphragm
Coaxial Coarse and Fine Focusing Knobs

Coarse Focusing Travel Range: 25mm

Fine Focusing Travel Range: 2µm/division

Aspheric Illumination 3W LED Illumination,Voltage: 100V-240V
Dark Field Unit Dark Field Ring (Dry, N.A.0.9)
Polarizing Unit Analyzer, Polarizer

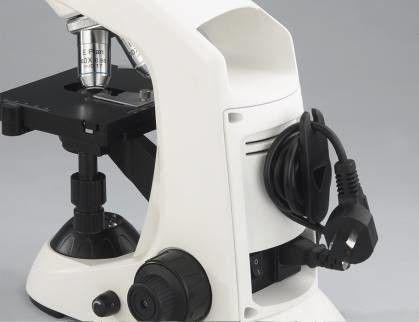

Wire Winding Device

Note: ● means current configuration, ○ means optional



Packing Size: 345x 260x 455mm; Gross Weight: 6.7 kg; Net Weight: 5.3 kg



1000x Biological Binocular Microscope With 20mm Eyepiece 0

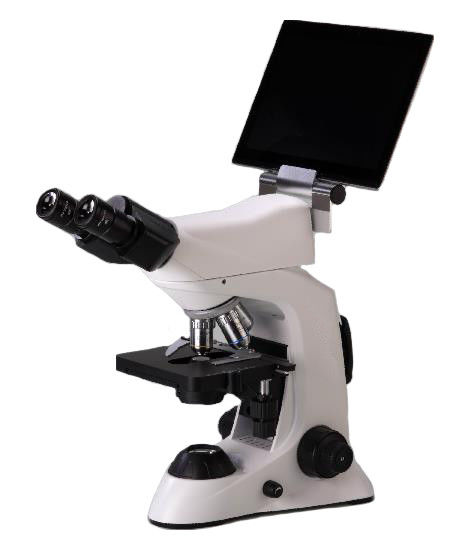

Easier to upgrade to digital version of notebook PC

1000x Biological Binocular Microscope With 20mm Eyepiece 1



Dark field unit                                 Polarizing unit

1000x Biological Binocular Microscope With 20mm Eyepiece 2  1000x Biological Binocular Microscope With 20mm Eyepiece 3



1000x Biological Binocular Microscope With 20mm Eyepiece 4
