Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Warranty: | 1 Year | Drawtube: | Trinocular |
| Theory: | Biological Microscope | Lead-time: | 15-20 Work Days |
| Supply Ability: | 1000 PCS/Month | Magnification: | 40X-1000X |
| Eyepiece: | WF10X/20mm | Nosepiece: | 4-Position |
| Objective: | 4X, 10X, 40X, 100X | Stage: | Mechanical Stage |
| Focusing: | Coaxial Coarse And Fine Focusing System | Illumination: | 3W LED Lamp |
| Highlight: | Polarizing Lab Biological Microscope,Dark Field Lab Biological Microscope,Lab Biological Microscope ODM |
||

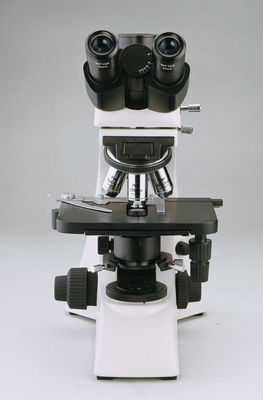

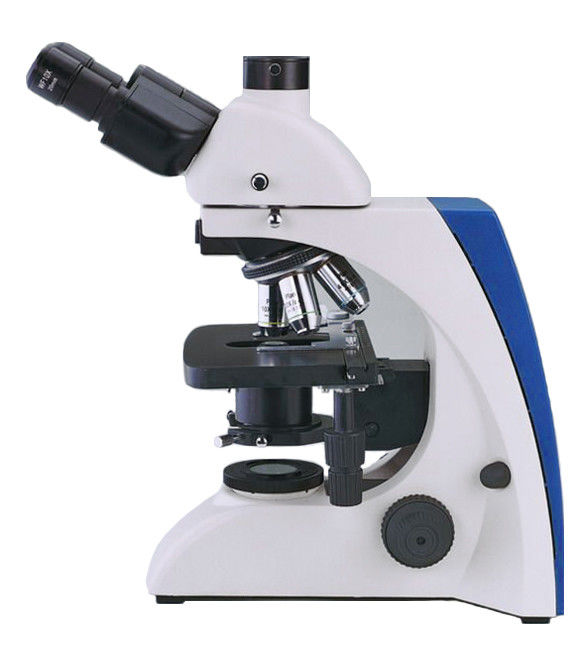

40X-1000X Trinocular Biological Microscope Integrated Dark Field Polarizing Fluorescence Phase Contrast
what is the difference between binocular and trinocular microscopes
M12139 40X-1000X Trinocular Biological Microscope Integrated Dark Field Polarizing Fluorescence Phase Contrast. This series microscope integrated the frequently-used functions including dark field, polarizing, fluorescence and phase contrast. It will be very convenient for the observers to change observing type to get an ideal image.
Features:
- Multi-functional, easier to exchange.
- The maxium magnification is 1600X by the eyepieces WF 16X /13 mm.
- Easy to move and keeping.
- Low position operation, convenient for long-term using.
| Items | Description / Value | M12139 | |
| Eyepiece | WF10×／20mm (23.2mm) | ●● | |
| Infinity Plan Objectives | PLAN 4×／0.10 | W.D.=12.10mm | ● |
| PLAN 10×／0.25 | W.D.=4.64mm | ● | |
| PLAN 20×／0.40(S) | W.D.=2.41mm | ● | |
| PLAN 40×／0.66(S) | W.D.=0.65mm | ● | |
| PLAN 100×／1.25(S, Oil) | W.D.=0.12mm | ● | |
| PLAN 2.5×／0.07 | W.D.=8.47mm | ○ | |
| PLAN 60×／0.80(S) | W.D.=0.33mm | ○ | |
| PLAN 100×／1.15(S, W) | W.D.=0.19mm | ○ | |
|
Infinity Plan |
UPlanFLN 10X/0.30 | W.D.=7.68mm | ○ |
| UPlanFLN 20X/0.50 | W.D.=1.96mm | ○ | |
| UPlanFLN 40X/0.75 | W.D.=0.78mm | ○ | |
| UPlanFLN 100X /1.30 (Oil) | W.D.=0.15mm | ○ | |
| Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm | ● | |
| Seidentopf Trinocular Head |
Inclined 30°,Rotatable 360°, Interpupilary |
○ | |
| Nosepiece | Quintuple | ● | |
| Mechanical Stage | Stage Size: 175mm×145mm,Travel: 78mm×55mm Coaxial Coarse and Fine Focusing Knobs Two Slide Holder |
● | |
|
Integrated stage Stage size: 182 mm×140mm,Travel range: 77mm×52mm |
○ | ||
| Condenser | Abbe N.A. 1.25 with iris diaphragm. | ● | |
| Swing Out Condenser, N.A. 0.9/0.13, with iris diaphragm. | ○ | ||
|
Koehler Illumination Wide voltage input: 100V～240V |
12V/20W Halogen Lamp | ○ | |
| 6V/30W Halogen Lamp | ○ | ||
| 3W-LED Illumination | ● | ||
| Filter | Blue | ● | |
| Green /Amber /Grey | ○ | ||
| C-mount | 1×/0.5×/0.75×C-mount (focus adjustable | ○ | |
| Fluorescence Attachment | Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. | ○ | |
| Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp. | ○ | ||
| Phase Contrast Unit |
Quintuple hole turret 10× /20× /40× /100× phase contrast objective |
○ | |
|
Independent slot 10× /20× /40× /100× phase contrast objective |
○ | ||
| Dark Field Unit | Dark field condenser (dry),apply to 4×- 40× objective | ○ | |
| Dark field condenser (wet),apply to 100× objective | ○ | ||

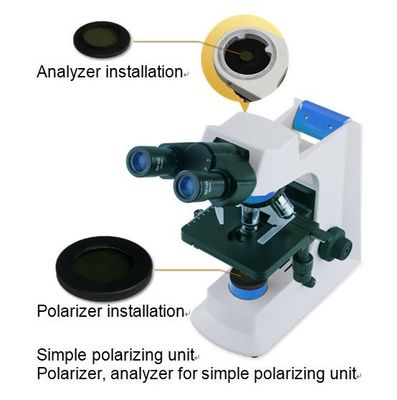

| Polarizing Attachment | Analyzer / Polarizer | ○ | |
Note: ● means current configuration, ○ means optional
Packing Size: 542mm×265mm×355mm, Gross Weight: 12 kgs, Net Weight: 10 kgs
Biological Microscope Size(mm)
Fluorescence Microscope Size(mm)
M12139-Series Biological Microscope General Layout Diagram
