Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Warranty: | 1 Year | Drawtube: | Trinocular |
| Theory: | Biological Microscope | Lead-time: | 15-20 Work Days |
| Supply Ability: | 1000 PCS/Month | Magnification: | 40X-1000X |
| Eyepiece: | WF10X/20mm | Nosepiece: | 4-Position |
| Objective: | 4X, 10X, 40X, 100X | Stage: | Mechanical Stage |
| Focusing: | Coaxial Coarse And Fine Focusing System | Illumination: | 3W LED Lamp |
| Highlight: | Trinocular Lab Biological Microscope,White Lab Biological Microscope,IATF Mechanical Stage Biological Microscope |
||

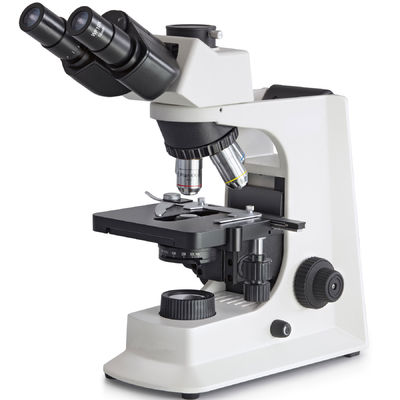

Trinocular Biological Microscope 40X-1000X with Various Accessories for Upgrading
when is the microscope a useful tool for biologists
M12141 Trinocular Biological Microscope 40X-1000X with Various Accessories for Upgrading. This series microscope has various accessories for upgrading with excellent OTICS infinity optical system, outstanding resolution and definition. It’s very convenient for the observers to change observing type to get an ideal image by exchanging the functions among dark field, polarizing, fluorescence and phase contrast are integrated.
Features:
- Excellent OTICS infinity optical system, outstanding resolution and definition.
- Original integrated stand for excellent stability.
- Unique aspheric illumination system, provide bright and comfortable lighting.
- Various colorful matching looking can provide lively environment and happy mood.
- Various accessories for upgrading.
- Back handle and observing hole convenient for carry and operation.
- Alternative color for main body.
| Items | Description / Value | M12141A | M12141B | M12141C | M12141D |
| Eyepiece | WF 10X-18mm | ●● | |||
| WF 10X- 20mm | ●● | ●● | ●● | ||
|
Finity Achromatic Objective |
4X | ● | |||
| 10X | ● | ||||
| 40X(S) | ● | ||||
| 100X/1.25 (Oil) (S) | ● | ||||
|
Finity Plan Objective |
4X | ● | |||
| 10X | ● | ||||
| 40X/0.65 (S) | ● | ||||
| 100X/1.25 (Oil) (S) | ● | ||||
|
Infinity E-Plan Objectives |
4X | ● | |||
| 10X | ● | ||||
| 40X (S) | ● | ||||
| 100X (Oil) (S) | ● | ||||
|
Infinity Plan Objectives |
4X | ● | |||
| 10X | ● | ||||
| 40X (S) | ● | ||||
| 100X (Oil) (S) | ● | ||||
| Plan 20X | ○ | ○ | |||
| Plan 60X (S) | ○ | ○ | |||
|
Butterfly Seidentopf Binocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm |
● | ● | ● | ● |
|
Butterfly Seidentopf Trinocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Distribution 20:80 |
○ | ○ | ○ | ○ |
|
3MP/5MP Digital Head 1/2’’CMOS color sequential scanning. USB2.0 Light Distribution: 20:80 |
○ | ○ | ○ | ○ | |
| Nosepiece | Quadplex | ● | ● | ● | ● |
| Quintuple | ○ | ○ | ○ | ○ | |
| Mechanical Stage |
Stage Size: 145 mm×140mm Travel: 76mmX52mm, Scale: 0.1mm Coaxial Coarse and Fine Focusing Knobs Travel Range: 26mm, Scale: 2um Two Slide Holder |
● | ● | ● | ● |
|
Rackless(Integrated) stage, size: 140×135mm,Travel range: 75×35mm, |
○ | ○ | ○ | ○ | |
| Condenser | Abbe N.A. 1.25(Iris Diaphragm) | ● | ● | ● | ● |
| Illumination | 3W-LED Illumination Systems | ● | ● | ● | ● |
| 12V/20W Halogen Lamp | ○ | ○ | ○ | ○ | |
| 6V/30W Halogen Lamp | ○ | ○ | ○ | ○ | |
| Field Diaphragm | ○ | ○ | ○ | ○ | |
| Dark Field Condenser | Dry, apply to 4X - 40X objective | ○ | ○ | ○ | ○ |
| Polarizing Attachment | Analyzer/Polarizer | ○ | ○ | ○ | ○ |
|
Independent phase contrast unit |
10X /20X /40X /100X | ○ | ○ | ||
|
Fluorescence Attachment |
Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. | ○ | ○ | ||
| Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp. | ○ | ○ | |||
| Filter | Blue /Green /Yellow | ○ | ○ | ○ | ○ |
| C-Mount | 1X/ 0.5X/0.75X (Focus adjustable) | ○ | ○ | ○ | ○ |
| Mirror | ○ | ○ | ○ | ○ | |
| Wire Winding Device | ○ | ○ | ○ | ○ |
Note: ● means current configuration, ○ means optional
Packing Size:550mm×380mm×290mm, Gross Weight: 7.5 kgs, Net Weight: 6.5 kgs

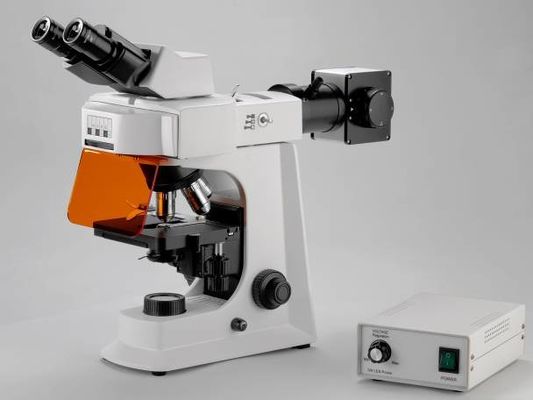

M12141 LED Fluorescence Microscope
M12141 Fluorescence Microscope
Wire winding device convenient for carry and storage (optional)
Phase contrast unit, Independent phase contrast unit (apply to infinity optical system)

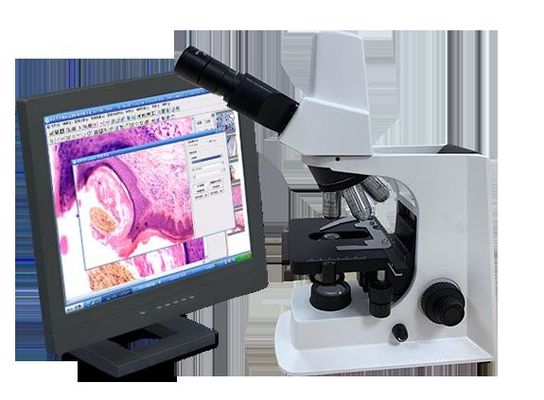

M12141E / M12141F Digital Microscope Characteristics
- Dustproof, moisture-proof, built-in chips.
- Light distribution 20:80.
- Built-in 3MP/5MP digital camera system,1/2’’CMOS color sequential scanning.
- USB2.0 connection without external power supply.
- Available for WINDOWS system.
