Product Details:
|
| Customization: | OEM, ODM | Packing: | 1 PC/Carton |
|---|---|---|---|
| Warranty: | 1 Year | Lead-time: | 15-20 Work Days |
| Supply Ability: | 1000 PCS/Month | Theory: | Industrial Camera |
| Target: | 1/1.2 | Output Mode: | USB3.0 |
| Frame Rate: | 30FPS | Resolution: | 5472 X 3648 |
| Highlight: | Industrial 20M Pixel Digital Camera,5472x3648 Pixel Digital Camera,CNC USB Microscope Camera |
||

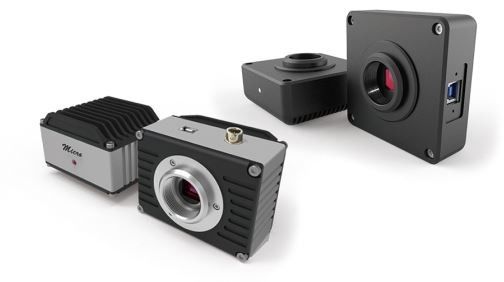

20M Pixel Digital Camera With Maximum Resolution 5472x3648
M21123 20M Pixel Digital Camera With Maximum Resolution 5472x3648. This series is a high-speed and high-resolution camera specially designed for microscope.
Features:
| Item | M21122A | M21122B | M21122C | M21122D | M21122E | M21122F | M21122G |
| Interface: | USB2.0 | USB2.0 | USB3.0 | USB3.0 | USB3.0 | USB3.0 | USB3.0 |
| Pixel: | 300 | 500 | 300 | 500 | 600 | 1200 | 2000 |
| Resolution: | 2048x1536 | 2592x1944 | 2048x1536 | 2592x1944 | 3073x2048 | 4000x3000 | 5472x3648 |
| Pixel size: | 3.2μm | 2.2μm | 3.2μm | 2.2μm | 2.4μm | 1.85μm | 2.4μm |
| Target: | 1/2 | 1/2.5 | 1/2 | 1/2.5 | 1/1.8 | 1/1.7 | 1/1.2 |
| Data: | 8bit | 8bit | 8bit | 8bit | 12bit | 12bit | 12bit |
| Exposure: | line by line | ||||||
| FPS Output: | 12FPS | 7FPS | 12FPS | 14FPS | 30FPS |
Bin(2x2):30FPS All-pixel:15FPS |
Bin(2x2):15FPS All-pixl:9FPS |
| Color Output: | Colorful | ||||||
