Product Details:
|
| Customization: | OEM, ODM | Packing: | 1 PC/Carton |
|---|---|---|---|
| Warranty: | 1 Year | Lead-time: | 15-20 Work Days |
| Supply Ability: | 1000 PCS/Month | Theory: | Industrial Camera |
| Target: | 1/2.8 | Output Mode: | HDMI, USB2.0x2 |
| Frame Rate: | 30FPS | Resolution: | 3840 X 2160 |
| Highlight: | 4K Digital Camera Microscope,Intelligent Zoom Digital Camera Microscope,Microscope Digital Camera HDMI Interface |
||

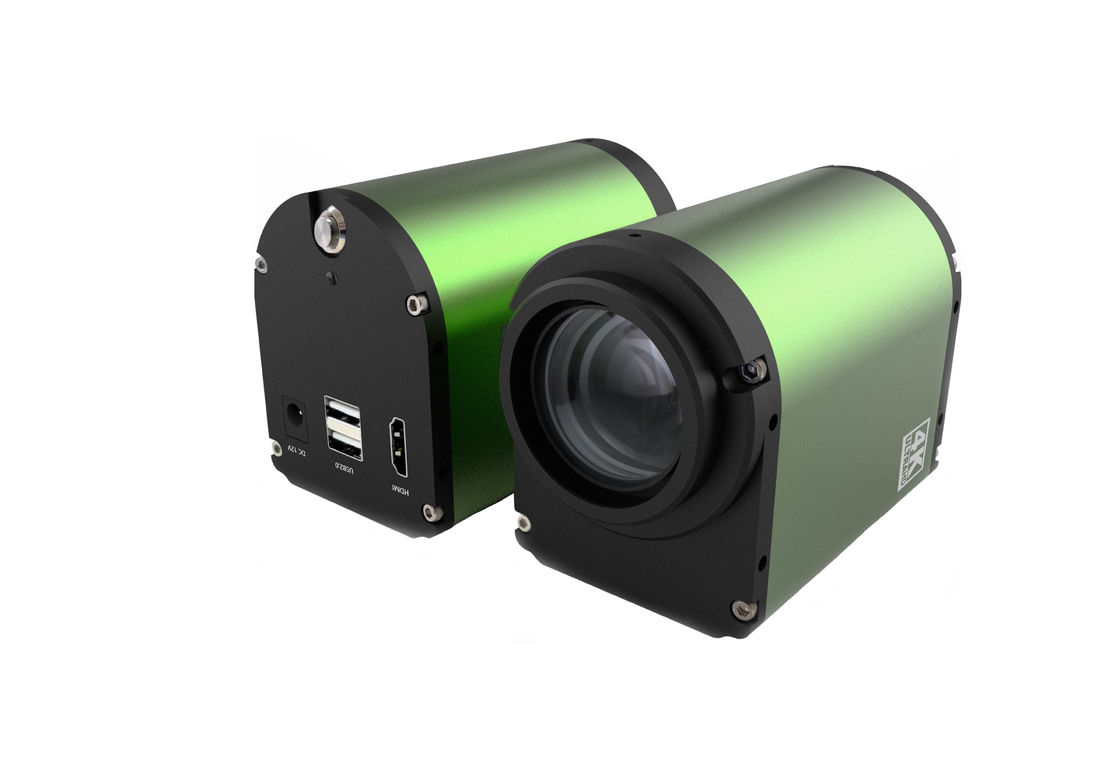

8M Large-field Intelligent Zoom 4K Digital Camera 30FPS with Measurement System
M21138 8M Large-field Intelligent Zoom 4K Digital Camera 30FPS with Measurement System. This series digital camera is 2021 new large-field intelligent zoom 4K camera, super cost-effective new product, adopt the new upgrade scheme of kernel image, with clear picture, remarkable details of image quality and fast focusing accuracy. 2K4K screen adaptation.
Features:
| Item | Description / Value | M21138 |
| Maximum Resolution: | 3840 X 2160 | ● |
| Pixel size: | 1.45μmx1.45μm | ● |
| Pixel: | 8M | ● |
| Target: | 1/2.8 | ● |
| Data: | 12bit | ● |
| Exposure: | Line by line | ● |
| Color Output: | Colorful | ● |
| FPS Output: | 30FPS | ● |
| Processor: | ARM Cortex A53, Dual-Core@Max.1 .4GHz Main Processor | ● |
| Storage: | USB flash disk | ● |
| Operation System: | Measurement system independently developed based on Linux3.1 | ● |
| Interface: | HDMI,USB2.0x2 | ● |
| Power Supply: | DC-12V/1A | ● |
| Weight: | 431g | ● |
| Working distance: | 10cm - ∞ | ● |

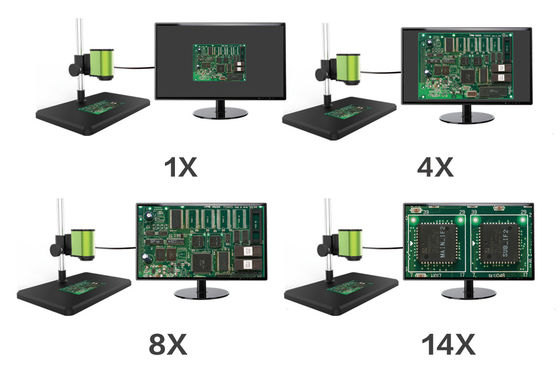

| Magnification: | 1X-14X | ● |
Remarks: ● means standard configuration ○ means optional
