Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M16110
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

1000X Trinocular Binocular Forensic Comparison Microscope Criminal Investigation Material

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Trinocular
Theory: Fluorescence Microscope Eyepiece: WF10X /18mm
Lead-time: 15-20 Work Days Magnification Ratio: 40X-1000X
Objective: 4X/10X/40X/100X Fluorescence Filter: CHROMA B/G(USA Brand)
Light Source: 12V 50W Halogen Lamp Supply Ability: 1000 PCS/Month
High Light:

1000X Forensic Comparison Microscope

,

Binocular Forensic Comparison Microscope

,

Criminal Investigation Material trinocular research microscope



Binocular Trinocular Comparison Microscope For Criminal Investigation Material Evidence Identification And Teaching

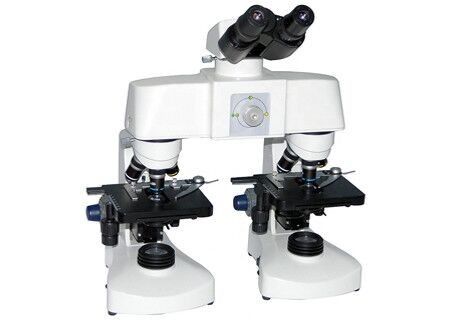

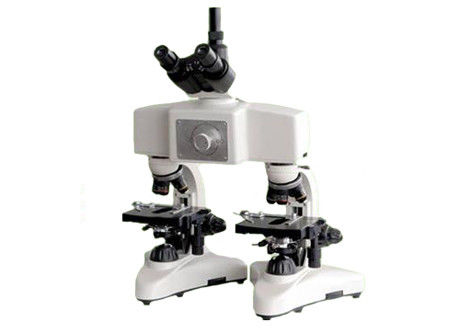

M16110 Binocular Trinocular Comparison Microscope For Criminal Investigation Material Evidence Identification And Teaching. The M16110 comparison microscope can observe the images of the left and right objects in the same way, so that the two objects can be enlarged and compared by docking and overlapping, and the tiny swallow differences between them can be distinguished, such as bullet marks, tool marks, fingerprints, seals, words, coins, printed matter, etc. It is an ideal instrument for the public security technical department to make criminal investigation material evidence, document identification and teaching. And it is also suitable for other departments that need to compare and identify objects.



Features:

  • The comparison head has many different observable states: all left images, all right images, some left and right images, overlapping left and right images, etc.
  • The comparison head is provided with a right magnification fine-tuning compensation mechanism.
  • The total magnification of comparison head is 1x.
  • The field of view of comparison head is larger than 20mm, and the comparison head is suitable for 195 objective lens.
  • The objective lens and magnification of the head-mounted biological microscope can be 4X, 10X, 20X, 40X, 50X, 60X and 100X.
  • The comparison head can be monocular head, binocular head and trinocular head.



Item Specification M16110A M16110B
Observation Tube: Binocular head inclined at 30°
  Trinocular head inclined at 30°
Eyepiece: WF10X/22mm, WF20X/11mm, WF30X/6mm ●● ●●
Objectives: 0.64X-4.5X, zoom ratio 1: 6.5, objective lens: 2X
Bridge magnification: 1.2X
magnification of photographic interface More than 2X
Illumination: 12V50W air-cooled strong light source, 8mm diameter hard optical fiber cold light source
working distance: 100mm
Stage: Stage size: 135X135mm, Moving range: X/51mm Y/51mm Z/54mm
Horizontal linkage range of stage: 50mm, two stages can scan synchronously.
Coarse lifting range: 50mm
Power supply: 220V AC input, 24V DC regulated output, in line with international safety standards.
Optional accessories: Embedded digital color camera system with 3 million pixels and resolution of 1024X768, supports USB digital or VGA/AV/DAI output, and is equipped with digital camera interface.

Note: ● means standard, ○ means optional
