Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate

Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate
Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate

Large Image :  Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M21142
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Lead-time: 15-20 Work Days
Exposure: Auto/Manual Resolution: 2560x1920
Application: For Microscopes Pixel: 5M
Target: 1/2.8" Frame Rate: 22FPS
Data Interface: USB2.0
High Light:

USB2.0 digital microscope camera

,

Pixel 5M digital microscope camera

,

22FPS usb 2.0 microscope camera

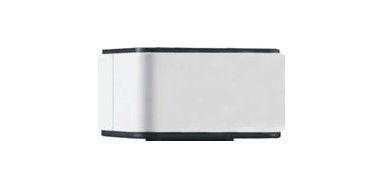

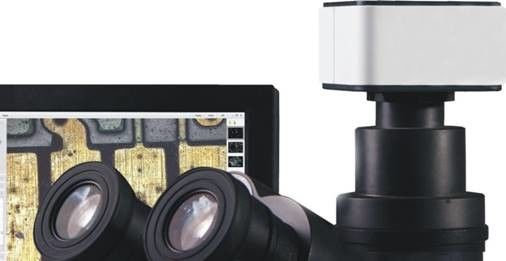

USB2.0 Interface Digital Graphics Accelerated Microscope Camera With Maximum Pixel 5M



M21142 USB2.0 Interface Digital Graphics Accelerated Microscope Camera With Maximum Pixel 5M. Innovative technology whilst maintaining the fidelity of the original image output simple and economical microscopy imaging.



Features:



- The camera uses USB2.0 interface to transmit images.

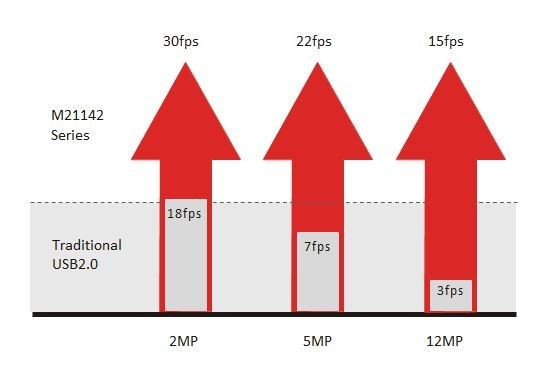

- Graphics Accelerated Microscope Camera To Get Higher FPS.



Item Description / Value M21142A M21142B M21142C
Interface: USB2.0
Sensor Model: Sony
Panasonic
Sensor Size: 1/2.9"
1/2.8"
1/2.33"
Resolution: 2MP, 1920x1080
5MP, 2560x1920
  12MP, 4000x3000
Pixel size: 2.8μmx2.8μm
2.0 μmx2.0μm
1.335μmx1.335μm

Frame Rate:



30fps
22fps
15fps
Color/Mono: Color
Shutter Type: Rolling Shutter
Exposure Mode: Auto/Manual
Picture Format: TIFF/JPG/PNG/DICOM
Operating System: Windows 7/8/10 (32 Bit/64 Bit)
PC Software: Self-developed
SDK: C/C++, C#, Directshow
Optical Interface: C-Mount
Data Interface: USB2.0

Operating

Temperature:

0-60℃

Operating

Humidity:

10%-85%
Camera Size: 68X68X42.5mm
Camera Weight: 253g

Remarks: ● means standard configuration ○ means optional



Maximum Pixel 5M USB 2.0 Digital Microscope Camera 22FPS Frame Rate 0
