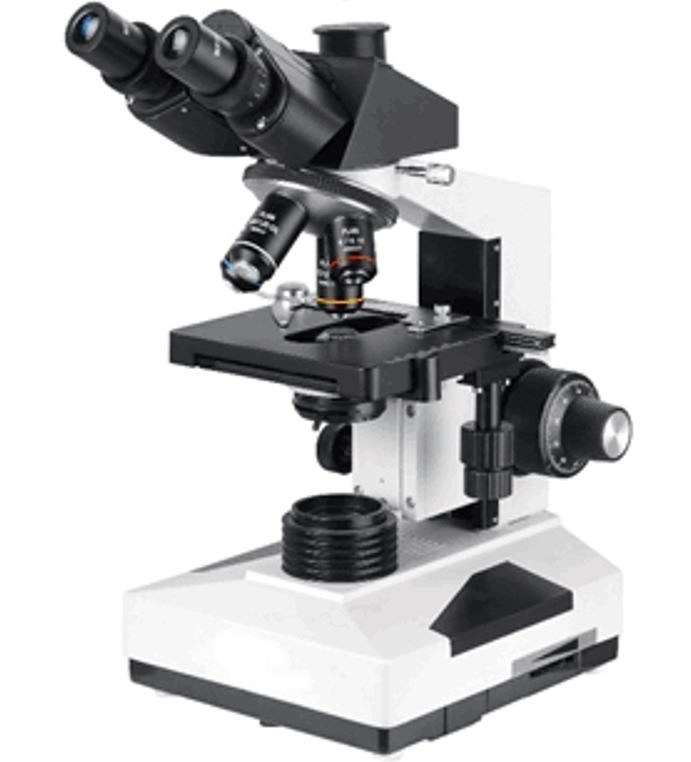

Trinocular Professional Lab Biological Microscope 40-1000X With Sony 6.3M Camera

Trinocular Professional Lab Biological Microscope 40-1000X With Sony 6.3M Camera
Trinocular Professional Lab Biological Microscope 40-1000X With Sony 6.3M Camera Trinocular Professional Lab Biological Microscope 40-1000X With Sony 6.3M Camera Trinocular Professional Lab Biological Microscope 40-1000X With Sony 6.3M Camera Trinocular Professional Lab Biological Microscope 40-1000X With Sony 6.3M Camera

Large Image :  Trinocular Professional Lab Biological Microscope 40-1000X With Sony 6.3M Camera

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M11116
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Trinocular Professional Lab Biological Microscope 40-1000X With Sony 6.3M Camera

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Trinocular
Theory: Biological Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Magnification: 40X-1000X
Eyepiece: WF10X/18mm Nosepiece: 4-Position
Viewing Head: 360 Rotatable Stage: Mechanical Stage
Focusing: Coaxial Focusing Knob, Fine Focusing Is Graduated In Increment Of 2um Camera: SONY 6.3M
High Light:

Trinocular lab biological microscope

,

40-1000X lab biological microscope

,

6.3M Camera professional biological microscope



40-1000X Trinocular Medical Lab Biological Microscope with Sony 6.3M Camera



M11116 40-1000X Trinocular Medical Lab Biological Microscope with Sony 6.3M Camera. With perfectly performed structure, high-definition optical image and simple operating system, M11116 realizes professional analysis, and meets all the needs of research in scientific, medical and other fields.



Features:

- Bright Field Observation Available

- Excellent optical system can obtain excellent optical performance.

- Modularization function design so that update system expediently

- Ideal ergonomic design is adopted in this unit and has easier operation and wider space



Items Specification M11116
Optical system Finity color corrected optical system
Viewing head 30° inclined gemel trinocular head, R:T=80:20, interpupillary distance: 50-75mm, both tube with diopter adjustable +5
Eyepiece Pair of Wide field eyepiece WF10X/18mm, one with pointer
Objective Plan achromatic objectives (4X10X/40Xs/100Xs)
Nosepiece Quadruple nosepiece
Frame Coaxial coarse and fine focus system with coarse stop and tension adjustment, coarse range: 25mm, fine precision: 0.002mm
Stage 132mmX140mm double layers mechanical stage, moving range 50X76mm, precision 0.1mm
Condenser N.A. 1.25 Abbe condenser with iris diaphragm and fiter holder
Illumination Built-in electrical iluminator, 7 bulbs LED(with 3 battery)
Other accessories Filter: natural

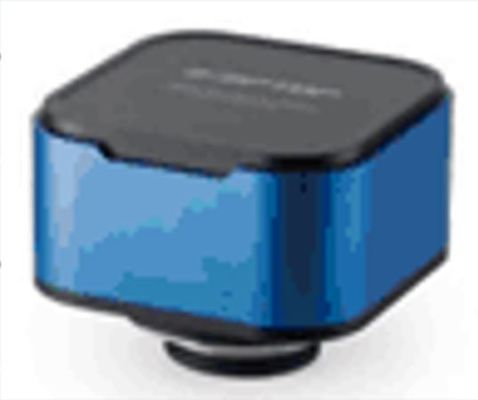

Camera OD630K SONY 6.3M IMX178 Color CMOS, 30fps@6 3MP,with 0 5X C-mount
LCD

1) External digital camera with 10" display

CMOS 4M pixel, 2688X1520@15fps, 1920X1080@30fps, Support SD card saving, 16G, Output interface: HDMI, USB2.0, Input: 12V/3.3A adapter, Cable: USB cable 1.5M, HDMI cable 5M

2) 0.5X C-mount;

Packing Inner foam, then paper carton



Note: ● means standard, ○ means optional

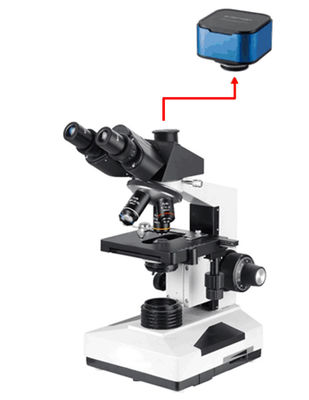

Camera Only:


Trinocular Professional Lab Biological Microscope 40-1000X With Sony 6.3M Camera 0

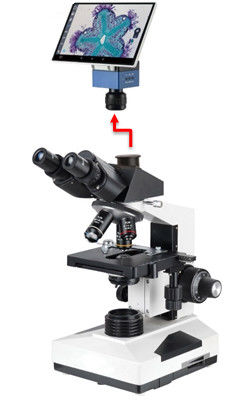

LCD Version with Camera:






                    Trinocular Professional Lab Biological Microscope 40-1000X With Sony 6.3M Camera 1
