HDMI Digital Microscope Camera USB 16MP Video Microscope Camera

HDMI Digital Microscope Camera USB 16MP Video Microscope Camera
HDMI Digital Microscope Camera USB 16MP Video Microscope Camera

Large Image :  HDMI Digital Microscope Camera USB 16MP Video Microscope Camera

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M21147
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

HDMI Digital Microscope Camera USB 16MP Video Microscope Camera

Description
Customization: OEM, ODM Packing: 1 PC/Carton
Warranty: 1 Year Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Color: Black
Resolution: 1920*1080 Pixels: 16MP
Frame Rate: 10fps Interface: USB2.0, HDMI, WIFI, Bluetooth
Sensor: 1/2.3'' Color CMOS Memory: Hdd Or USB Flash Disk
Screen Size: 12'' Touchpad Application: Biological And Metallurgical Microscopes
High Light:

HDMI digital microscope camera

,

USB digital microscope camera

,

16MP video microscope camera

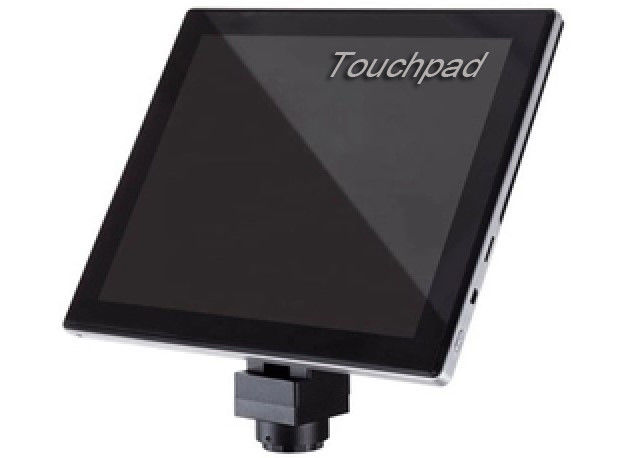

HDMI & USB Output 12 Inch Touchpad with Built-in 16MP Mmicroscope Camera



M21147 is a universal industrial touchpad for both biological and metallurgical microscopes, 12 inch touchpad with built-in 16MP microscope camera.



Features:

- Universal industrial touchpad for both biological and metallurgical microscopes.

- 12 inch touchpad with built-in 16MP microscope camera.

- Long life span.



Item Description / Value M21147
Touchpad Tablet
Operation system: Windows 10 64-bit
Language: Multilanguages already installed
LCD monitor: 12 inch HD monitor, touch screen
CPU: Intel® Atom™ , Quad core, 1.92 GHz
Resolution: 1920x1080, 16/9 Full HD
Storage: Hdd or USB flash disk
Input/output port: USB2.0, HDMI, WIFI, Bluetooth
Wifi: 2.4GHz/5GHz WIFI, 802.11a/b/g/n/ac
BlueTooth: Bluetooth 4.0
Control: By mouse and by touching
Power supply: Power Adapter, input AC200-240V, 50/60Hz. Output: 2V/2A
Software:

Vision Lite (full view function is also included for a Live Camera view).

Continuous auto exposure, image size, image capture, compressed video capture, measurement.

Continuous control of Brightness, gain, exposur time, colors, color enhancement.

Touchpad camera
Resolution: 16MP
Signal output: USB2.0
Sensor Size: 1/2.3”
Sensor technology: CMOS
Image format: 16:9
Full image size: Max image 4608*3456, video 1920*1080P
Pixel size: 1.335um*1.335um
Frame rate full resolution: 10fps
Frame rate other resolutions: 15 fps (1920x1080), 30 fps (640x480)
Sensitivity: 0.5 V/Lux-second (550 nm)
Signal / noise ratio: 45 dB
Dynamic range: 70 dB
Max exposure time: 15s
ADC conversion: 12 Bit
Color depth: 8 Bit
On camera IR filter: 650nm
Automatic white balance: Auto/Manual
Automatic gain control: Auto/Manual
Automatic back light control: Auto/Manual
Exposure control: Auto/Manual

Note: ● means standard, ○ means optional
