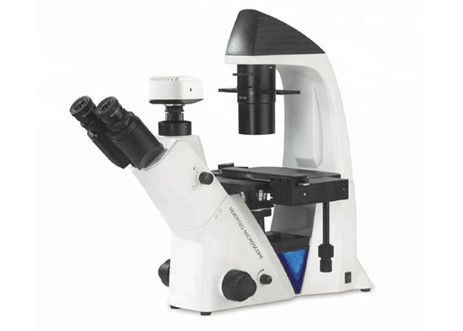

Biological 40X Inverted Optical Microscope WF10X/22mm Trinocular

Biological 40X Inverted Optical Microscope WF10X/22mm Trinocular
Biological 40X Inverted Optical Microscope WF10X/22mm Trinocular

Large Image :  Biological 40X Inverted Optical Microscope WF10X/22mm Trinocular

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M13100
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Biological 40X Inverted Optical Microscope WF10X/22mm Trinocular

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Biological Microscope
Magnification: 40X-400X Eyepiece: WF10X/22mm
High Light:

40X Inverted Optical Microscope

,

WF10X/22mm Inverted Optical Microscope

,

Biological inverted trinocular microscope



Inverted Biological Microscope



The product could be widely used in various industrial applications with perfect performance. The features are shown as



- New research and new development.

- Apply to observation and cultivation for cell tissue.

- Wide field eyepiece, view field up to Φ23mm,more comfortable for observation.

- Long working distance condenser N.A. 0.30,Working distance:72mm.

- Working distance: 195mm (without condenser),available for extra high culture dish.

- Large size stage, convenient for research.

- Size:240mm(X)× 210(Y)mm.

- Mechanical stage available for 96 holes plate. Moving range:128mm(X)× 80(Y)mm.

- Long working distance condenser N.A. 0.30,Working distance:72mm Working distance: 195mm (without condenser),available for extra high culture dish Large size stage, convenient for research. Size:240mm(X)× 210(Y)mm Mechanical stage available for 96 holes plate. Moving range:128mm(X)× 80(Y)mm



Item Description / Value
Eyepiece: WF10X/22mm(23mm is optional)
Head:

Inclined 45°, interpupilary distance: 48-76mm

Light distribution (both): 100: 0(100% for eyepiece)

80:20 (80% for trinocular head, and 20% for eyepiece)

Nosepiece: Quintuple
Mechanical Stage:

Stage size: X×Y: 210×241mm, Round slide size:Φ110mm, Attached mechanical stage

(available for 96 holes plate, moving range X×Y:128×80mm.)

Condenser: Long working distance, Quickly detachable , N.A.0.3, Working distance: 72mm (with condenser),195mm(without condenser).
Koehler Illumination: 6V/30W (input voltage:100V~240V)
Adaptor for Digital Photograph: Use for CANON/NIKON/ etc.
