Trinocular 40X 100X Trinocular Compound Microscope With Camera WF10x 16mm

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

Trinocular 40X 100X Trinocular Compound Microscope With Camera WF10x 16mm

Trinocular 40X 100X Trinocular Compound Microscope With Camera WF10x 16mm
Trinocular 40X 100X Trinocular Compound Microscope With Camera WF10x 16mm

Large Image :  Trinocular 40X 100X Trinocular Compound Microscope With Camera WF10x 16mm

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M13109
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Trinocular 40X 100X Trinocular Compound Microscope With Camera WF10x 16mm

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Trinocular
Theory: Metallurgical Microscope Lead-time: 15-20 Work Days
Eyepiece: WF10 X (Φ16mm) Objective: 10X, 25X, 40X, 100X (oil)
High Light:

100X trinocular compound microscope

,

40X trinocular compound microscope

,

WF10x 16mm inverted microscope with camera



Trinocular Inverted Metallurgical Microscope

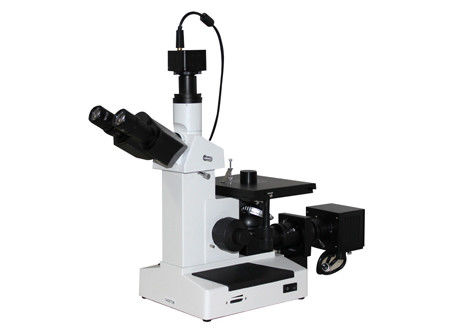

M13109 Trinocular Inverted Metallurgical Microscope. M13109 is an inverted metallurgical microscope mainly used for metal identification and analysis of the internal structure of organizations. .



Features:



- It is the important device which can be used to study the metallographic of metal and it is also the key instrument to verify the product quality in industrial application.

- This microscope can be equipped with photographic device which can take metallographic picture to carry out artificial contrast analysis, image editing, output, storage, management and other functions.



Item Description / Value
View tube: Trinocular, Hinge trinocular, 30° Tilt, Adjustable range: 55-75mm
Eyepiece: WF10 x (Φ16mm)
Objective: Flat fielding achromatic objective lens 10X, 25X, 40X, 100X (oil)
Nosepiece: 4-position
Stage:

150 x 200mm

Moving range: vertical 15mm, horizontal 15mm

Photographic device (optional):

Image adapting lens, high resolution color CCD camera static and dynamic capturing card, image analysis software, EPSON color jet printer

Digital camera, specific adapting lens
