Trinocular DIC Science Lab Microscope Quality WF10X/22mm 5W LED

Trinocular DIC Science Lab Microscope Quality WF10X/22mm 5W LED
Trinocular DIC Science Lab Microscope Quality WF10X/22mm 5W LED

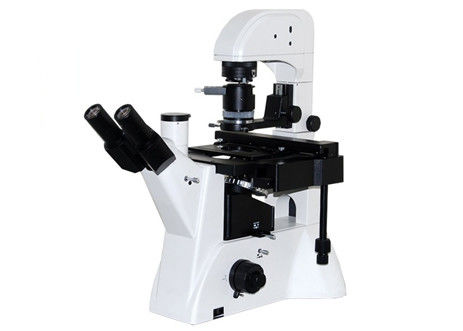

Large Image :  Trinocular DIC Science Lab Microscope Quality WF10X/22mm 5W LED

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M13105
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Trinocular DIC Science Lab Microscope Quality WF10X/22mm 5W LED

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Biological Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Optical System: Infinity Achromatic Optical System Eyepiece: WF10X/22mm
Nosepiece: 5 Position Objective: 5X/10X/20X/40X
Focusing: Coaxial Coarse And Fine Focusing Illumination: 5W LED
High Light:

WF10X/22mm science lab microscope

,

Trinocular DIC science lab microscope

,

5W LED lab quality microscope



Trinocular Laboratory Cell Culture Observing Inverted DIC Biological Microscope



M13105 Trinocular Laboratory Cell Culture Observing Inverted DIC Biological Microscope It is an inverted biological microscope, which is ideal design for cell culture observing. It sets new standards in advanced imaging with its compact frame, outstanding optical performance and exceptional flexibility.



Features:



- Cell culture is very important in life science and biological research.

- To observe cell in culture vessel,  check and observe the cell culturing and splitting status, an inverted biological is needed.

- With a camera researcher, it can take a picture or record a video and save it in a computer for analysis.



Item Description / Value
Optical system: Infinity Plan Achromatic optical system
Observation: Bright field, DIC.
View tube: Trinocular phototube tube, 30 ° inclining. IPD adjustment: 54mm ~ 75mm, Diopter adjustment: ± 5
Nosepiece: 5-position
Objective: Long working distance Infinity Plan Achromatic objective: 5X, 10X, 20X, 40X.
Condenser: Universal condenser for bright field, DIC. N.A. 0.3.
Stage: Flex M Frame Stage with Inserts for Specimens, Slides, Chambers and Petri Dishes. Double layer mechanical stage. Stage size:224× 208mm, moving range: 80mmx135mm
Focusing system: Coarse and fine focusing system. It is low-hand ergonomic designed for comfortable using. Safety stops for protecting the coaxial control from turning too far. The tightness of the knobs are adjustable according to the habit of the user.
Illumination: 5W LED illumination. Brightness adjustable. With built-in Heat reflecting filter.
Camera adapter: 0.5X or 1X.
Camera: Optional.
