Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M13107
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

40X/0.6 Cell Culture Inverted Microscope Trinocular 10X/0.2 6V 20W Halogen Lamp

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Biological Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Eyepiece: WF10X Light Source: 6V 20W Halogen Lamp
High Light:

40X/0.6 cell culture inverted microscope

,

6V 20W cell culture inverted microscope

,

10X/0.25 trinocular inverted microscope



Trinocular Inverted Microscope With Camera For Cell Culture

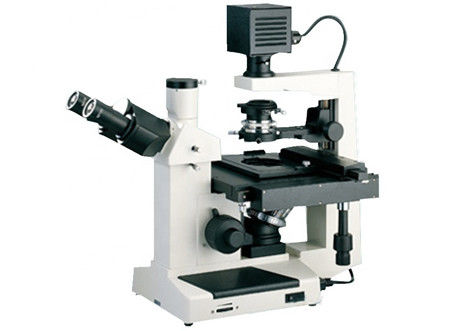

M13107 is an inverted biological microscope specially designed for cell culture observing, for example the biological lab in the university.



Features:



- It can take pictures or record a video and save it in a computer for analysis.

- An inverted microscope is a very helpful instrument for the observers to check and observe the cell culturing and splitting status.





Item Description / Value M13107
Optical system: Universal infinity plan achromatic optical system.
View tube:

Trinocular phototube tube, 45° inclining

IPD adjustment: 54mm ~ 75mm, diopter adjustment: ±5

Eyepiece: High eye level wide field WF PL10 /22mm. Central telescope
Objective:

Infinity Long working distance Plan achromat objective:

10X/0.25 , 25X/0.4 , 40X/0.6

Infinity Long working distance Plan achroma phase contrast objective: 10X/0.25.

Nosepiece: Revolving 5 position nosepiece
Illumination: Halogen lamp Transmitted Illuminator
Focusing:

Coaxial coarse and fine focusing system. Movement by roller guider (Roller and pinion). Rubber grip around fine and coarse adjust knob.

Tension adjustment of coarse regulation knob. Upper limit stoper for protecting the lens and sample. Fine adjustment accuracy: 0.002mm.

Stage:

Flex M Frame Stage with Exchangeable transparent insert plate for Specimens, Slides and Petri Dishe etc.

XY coaxial knob place on right side of the plain stage.

Microplate holder equipped with the escape function.

Stage. Stage size: 224×208mm, stage stroke: 112mm ×79mm

Condenser: Long Working Distance Condenser.
Camera adapter: 0.5X or 1X C-Mount.
Accessories: Dust cover, manual, cleaning kits, all necessnary cables.
Camera: Optional
Power supply: AC100-240V, 50/60Hz

Note: ● means standard, ○ means optional
