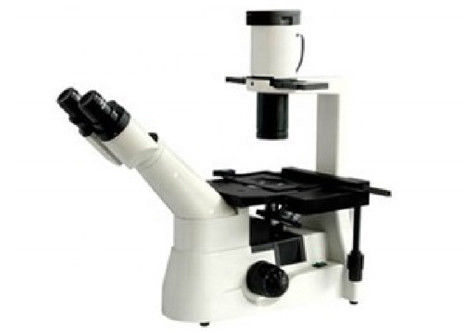

RMS Threaded Inverted Optical Microscope Light WF10X/22mm Living Cell

RMS Threaded Inverted Optical Microscope Light WF10X/22mm Living Cell
RMS Threaded Inverted Optical Microscope Light WF10X/22mm Living Cell

Large Image :  RMS Threaded Inverted Optical Microscope Light WF10X/22mm Living Cell

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M13106
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

RMS Threaded Inverted Optical Microscope Light WF10X/22mm Living Cell

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Biological Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Eyepiece: WF10X/22mm Objective: 4X/10X/20X/40X
Nosepiece: Four-hole Converter Light Source: Halogen Lamp 6V/20W
High Light:

WF10X/22mm Inverted Optical Microscope

,

RMS threaded Inverted Optical Microscope

,

Living Cell inverted light microscope



Inverted Biological Microscope For Living Cell Culturing



M13106 Inverted Biological Microscope For Living Cell Culturing. As an inverted biological microscope, M13106 is specially design for living cell culture observing during science and biological research.



Features:



- To check and observe the cell culturing and splitting status, an inverted microscope is needed.

- With a camera researcher, it can take a picture or record a video and save it in a computer for analysis.



Item Description / Value
Optical system: Infinity-corrected optical system; RMS-threaded objectives with 45 mm parfocal distance.
Application: For observing living cells or organisms in culture vessel.
Illumination: Long life Adjustable-intensity LED (>50,000-hour life per light cube).
View tube: Trinocular phototube tube, 30 ° inclining. IPD adjustment: 54mm ~ 75mm, Diopter adjustment: ± 5
Observation: Fluorescence and transmitted light (bright-field and phase-contrast).
Eyepiece: Extra wide field eyepiece WF PL10 × (Φ22mm).
Objective: Infinity Plan long working distance LWD 4X, 10X, 20X, 40X. Optional: 2X (no phase).
Nosepiece: Five-position/quintuple, manual control.
Condenser: 3-position turret for bright field and phase contrast. Working distance: 72mm, NA 0.3.
Stage:

Fixed stage and Optional mechanical stage. With X-Y axis controls and vessel holder framework.

Fixed stage size:250×160mm, moving range: 120mm ×80mm.

Focusing system: Coaxial focus knobs with tension control. Coarse focus: 38 mm/rev.
LCD display: 12.1” high-resolution (1920 x 1080 pixels) color monitor with adjustable tilt.
Camera: 1/2” 2,048 x 1,536, 3.1 megapixels. 24-bit full-color TIFF or PNG; JPEG, BMP (2,048 x 1,536 pixels).
Image software: Embedded operating system with imaging software for image capturing and saving by mouse.
Output ports: 2 USB 2.0 ports.
Power supply: 220-240V, 50/60Hz, Schuko type, plug configurations type F.
