Product Details:
|
Color: | White | Customization: | OEM, ODM |
---|---|---|---|
Packing: | 1 PC/Carton | Warranty: | 1 Year |
Drawtube: | Trinocular | Theory: | Metallurgical Microscope |
Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
Eyepiece: | PL10X/18mm WF15X/13mm WF20X/10mm Optional | Objective: | 5X, 10X, 20X, 50X, 100X |
Head: | Gemel Trinocular Head, 45° Inclined With Adjustment Diopter | Nosepiece: | Quadruple Nosepiece Or Quintuple Nosepiece |
Mechanical Stage: | 180*155mm | Moving Range: | 75*40mm |
Highlight: | 500X Inverted Optical Microscope,WF15X/13mm Inverted Optical Microscope,Trinocular inverted microscope for cell culture |

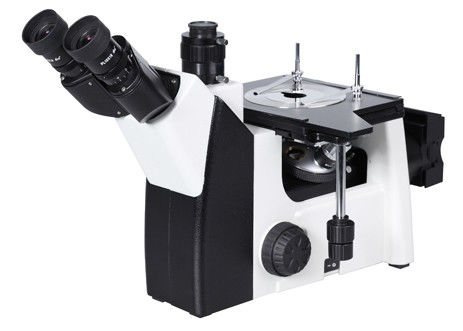

50X-500X Trinocular Inverted Metallurgical Microscope
M13102 50X-500X Trinocular Inverted Metallurgical Microscope Using an excellent infinity optical system, it can provide excellent optical performance. The compact and stable high-rigidity main body fully embodies the anti-vibration requirements of micromanipulation. The modularized functional design can facilitate the upgrade of the system to realize functions such as polarization observation, dark field observation, and bright field observation. The lighting system fully considers heat dissipation and safety, and the bulb can be replaced quickly. The ideal design that meets the requirements of ergonomics makes the operation more convenient and comfortable, and the space is wider. It can be used for microscopic observation of semiconductor silicon wafers, LCD substrates, solid powders and other industrial samples. It is an ideal instrument for research in the fields of materials science and precision electronic engineering.
Features:
- High-precision course and fine focusing mechanism.
- Large size mechanical mobile platform.
- Widely used in metallographic analysis, semiconductor silicon wafers detection, geological and mineral analysis, precise engineering, measurement and other fields.
Item | Description / Value |
Head: | Trinocular |
Eyepiece: |
High eye-point plan eyepiece PL10X/18mm High eye-point plan eyepiece PL10X/18mm, with micrometer High eye-point eyepiece WF15X/13mm High eye-point eyepiece WF15X/13mm,with micrometer High eye-point eyepiece WF20X/10mm |
Objective: |
Long working distance plan achromatic metallurgical objective 5X LMPL5X/0.13 WD=15.50mm Long working distance plan achromatic metallurgical objective 10X LMPL10X/0.25 WD=8.70mm Long working distance plan achromatic metallurgical objective 20X LMPL20X/0.40 WD=8.80mm Long working distance plan achromatic metallurgical objective 50X LMPL50X/0.60 WD=5.10mm Long working distance plan achromatic metallurgical objective 100X LMPL100X/0.80 WD=2.00mm |
Nosepiece: |
BS-NPI4 Quadruple nosepiece BS-NP15 Quintuple nosepiece |
Machine appearance: | Mechanical stage, size:180*155mm,low position by right hand, moving range: 75*40mm, precision 0.1mm |
Stage board: |
Metal stage board(φ12 inner aperture) Metal stage board(φ 25 inner aperture) |
IE200M HAL: | Transmission Koehler illumination with alterable aperture diaphragm and centerable field diaphragm, wide-range voltage 90-240V, 6V30W halogen lamp, with continuous intensity. |
Gross Weight: | 64.5*34.3*44cm |
Packaging Size: | 7.80 kg |
