Product Details:
|
Color: | White | Customization: | OEM, ODM |
---|---|---|---|
Packing: | 1 PC/Carton | Warranty: | 1 Year |
Drawtube: | Trinocular | Theory: | Metallurgical Microscope |
Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
Eyepiece: | PL10X/18mm WF15X/13mm WF20X/10mm Optional | Objective: | 5X, 10X, 20X, 50X, 100X |
Head: | Gemel Trinocular Head, 45° Inclined With Adjustment Diopter | Nosepiece: | Quadruple Nosepiece Or Quintuple Nosepiece |
Mechanical Stage: | 180*155mm | Moving Range: | 75*40mm |
Highlight: | 2000X medical laboratory microscope,50X 100X medical laboratory microscope,75x40mm polarized optical microscopy |

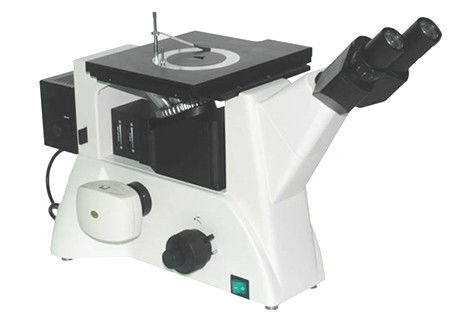

2000X Trinocular Inverted Metallurgical Microscope
M13103 2000X Trinocular Inverted Metallurgical Microscope The lighting system fully considers heat dissipation and safety, and the bulb can be replaced quickly. The ideal design that meets the requirements of ergonomics makes the operation more convenient and comfortable, and the space is wider. It can be used for microscopic observation of semiconductor silicon wafers, LCD substrates, solid powders and other industrial samples.
Features:
- It’s widely used in metallographic analysis, semiconductor silicon wafers detection, geological and mineral analysis, precise engineering, measurement and other fields.
- The ideal design that meets the requirements of ergonomics makes the operation more convenient and comfortable, and the space is wider. It can be used for microscopic observation of semiconductor silicon wafers, LCD substrates, solid powders and other industrial samples.
- It is an ideal instrument for research in the fields of materials science and precision electronic engineering, with high-precision course and fine focusing mechanism and large size mechanical mobile platform.
Item | Description / Value |
Head: | (Color corrected finity optical system) Low position coaxial focus system, coarse: 38mm per rotation, fine precision 0.002mm, Gemel trinocular head, 45° inclined, with adjustment diopter, inter-pupillary range 54-75mm. Light split rate: 80%/20% |
Eyepiece: |
PL10X/18mm PL10X/18mm with micrometer WF15X/13mm WF15X/13mm with micrometer WF20X/10mm |
Objective: |
Long working distance plan achromatic metallurgical objective 5X LMPL5X/0.13 WD=15.50mm 10X LMPL10X/0.25 WD=8.70mm 20X LMPL20X/0.40 WD=8.80mm 50X LMPL50X/0.60 WD=5.10mm 100X LMPL100X/0.80 WD=2.00mm |
Nosepiece: | BS-NPI4 / BS-NP15 Quadruple nosepiece |
Machine appearance: | Mechanical stage, size:180*155mm, low position by right hand, moving range: 75*40mm, precision 0.1mm |
Stage board: | Metal stage board(φ12 / φ 25 inner aperture) |
IE200M LED: | Transmission Koehler illumination with alterable aperture diaphragm and centerable field diaphragm, wide-range voltage 90-240V, 5W LED bulb (2850-3250K), with continuous intensity. |
Gross Weight: | 64.5*34.3*44cm |
Packaging Size: | 7.80 kg |
