Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Packing: | 1 PC/Carton | Warranty: | 1 Year |
| Drawtube: | Trinocular | Theory: | Metallurgical Microscope |
| Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
| Eyepiece: | WF10X | Illumination: | Halogen Lamp Or LED Lamp |
| Magnification: | 50X/100X/200X/400X/1000X | Camera: | Optional |
| High Light: | 200X reflected light microscope,400X reflected light microscope,Polarizing transmitted light microscope |
||

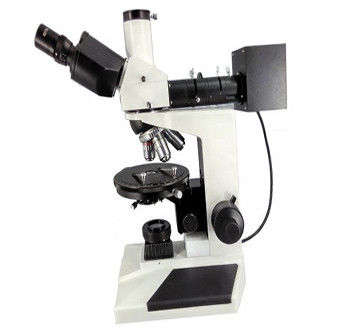

Polarizing Microscope With Round Rotating Stage And Reflected Light & Transmitted Light
M14106 Polarizing Microscope With Round Rotating Stage And Reflected Light & Transmitted Light. It is widely used in the industry, special for chip detecting, material analysis, mineral analysis, metal analysis, etc.
Features:
- It is a high cost-performance ratio microscope with excellent optical system.
- It’s easy to use by free changing from reflected light to transmitted light.
- Polarizer and analyzer can realize polarization.
| Item | Description / Value |
| Observation method: | Reflecting, polarization, transmission |
| Optical system: | Achromatic optical system |
| View tube: | Trinocular, Hinge trinocular, 30 ° Tilt , with switchable analyzer and polaroid, Splitting ratio: 100: 0 or 0:100 |
| Eyepiece: | High eye level WF PL10 × (Φ18mm) |
| Objective: |
Achromatic long working distance metallurgical objective:(choose two from 20X,40X,60X) PL5X/0.12, working distance: 26.1mm PL L10X/0.25, working distance: 20.5mm PL L20X/0.4, working distance: 8.8mm PL L40X/0.6, working distance: 3.98mm PL L60X/0.75(spring), working distance: 3.18mm |
| Nosepiece: | Four-position nosepiece. |
| Stage: |
Round rotation stage with scale, stage size 120mm diameter. Optional: ouble layer X-Y mechanical stage : 185×140mm, moving range: 75mm×50mm. |
| Focusing system: |
Coaxial positioning system. Tightness and height limitation of coarse regulation are adjustable. Fine adjustment accuracy :0.002mm. |
| Illumination: |
Transmission system: 6V/20W whalogen lamp, brightness could be adjusted. NA1.2 5 Abbe condensor, can move up and down. Blue filter, grand glass. Optical collector (for whalogen lamp )with built in field stop. Reflecting system: 6V/20W whalogen lamp, brightness could be adjusted. With field stop, aperture stop, polarizer, green filter, blue filter, yellow filter, gand glass. |
