DIC Optical Polarizing Microscope WF10X 5X 50X Reflected Microscope Light Source

DIC Optical Polarizing Microscope WF10X 5X 50X Reflected Microscope Light Source
DIC Optical Polarizing Microscope WF10X 5X 50X Reflected Microscope Light Source

Large Image :  DIC Optical Polarizing Microscope WF10X 5X 50X Reflected Microscope Light Source

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M14109
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

DIC Optical Polarizing Microscope WF10X 5X 50X Reflected Microscope Light Source

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Metallurgical Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Eyepiece: WF10X Illumination: Halogen Lamp Or LED
Optical System: Infinite Optical System Objective: 5X/10X/20X/50X/100X
Nosepiece: 5-Position Focusing: Coarse Adjustment Focusing
Magnification: 50X-1000X Camera: Optional
High Light:

DIC Optical Polarizing Microscope

,

WF10X Optical Polarizing Microscope

,

5X 50X reflected microscope light source



Trinocular Metallurgical Microscope Polarizing Microscope With Camera And Measurement Software

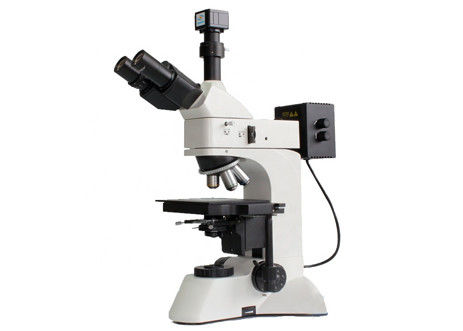

M14109 Trinocular Metallurgical Microscope Polarizing Microscope With Camera And Measurement Software. M14109 is a professional differential interference contrast (DIC) metallurgical microscope, equipped polarizing kits, camera and software. It’s an ideal instrument in research work in electronic, metallography, mineralogy and precision engineering etc.



Features:



- It is equipped with transmitted illuminator and reflected illuminator, infinity plan achromatic objectives with long working distance, wide-field eyepieces and polarizing kits.

- It provides clear and 3D image, beautiful sculpt and convenient control etc.

- It is the ideal instruments in research work in electronic, metallography, mineralogy and precision engineering etc.



Item Description / Value
Optical system: Infinity Plan achromatic optical system
Observation: Bright field, polarizing, DIC.
View tube:

Trinocular, 30° inclined, 360°rotating. Splitting ratio: 100: 0 or 0:100.

Inter-pupillary distance 50-75mm.

Diopter adjustment: ± 5 diopters

Magnification: Optical magnification: 50X-1000X
Eyepiece: Wide field WF 10X (Φ22mm).
Objective: Infinity plan achromatic long working distance metallurgical objective: 5X, 10X, 20X, 50X, 100X
Nosepiece: 5-position
DIC: 10X DIC, 20X DIC.
Stage: Double layer mechanical stage: 210*140mm, moving range: 75mm*50mm,Right hand control for X and Y direction.
Focusing mechanism:

Coaxial coarse and fine focusing system.

Tightness and height limitation for coarse regulation are adjustable.

Fine adjustment accuracy: 0.002mm

Focusing stopper for protecting objective and samples.

Illumination: Transmitted & reflected illumination.12V/30W halogen lamp or LED lamp, brightness adjustable. With center adjustable field stop and aperture stop.
Camera adapter: 0.5X or 1X C-mount.
Camera: Optional.
Power supply: AC100-240V, 50/60Hz.
