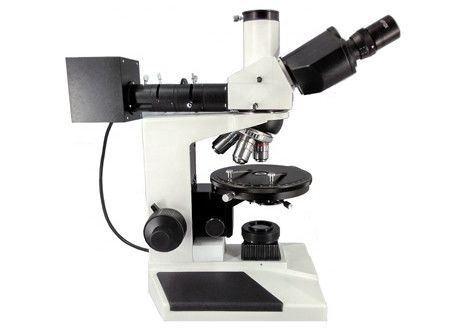

400X 200X Petrographic Optical Polarizing Microscope Reflected Illumination Transmission

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

400X 200X Petrographic Optical Polarizing Microscope Reflected Illumination Transmission

400X 200X Petrographic Optical Polarizing Microscope Reflected Illumination Transmission
400X 200X Petrographic Optical Polarizing Microscope Reflected Illumination Transmission

Large Image :  400X 200X Petrographic Optical Polarizing Microscope Reflected Illumination Transmission

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M14107
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

400X 200X Petrographic Optical Polarizing Microscope Reflected Illumination Transmission

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Metallurgical Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Eyepiece: WF10X Illumination: Halogen Lamp Or LED Lamp
Magnification: 50X/100X/200X/400X/1000X Camera: Optional
High Light:

400X Optical Polarizing Microscope

,

200X Optical Polarizing Microscope

,

Transmission polarizing petrographic microscope



40X-1000X Petrographic Polarizing Microscope With Reflected Illumination And Transmission Illumination



M14107 40X-1000X Petrographic Polarizing Microscope With Reflected Illumination And Transmission Illumination. It is special designed and used to be used petrographic field with polarizing kits.



Features:



- It is a high cost-performance ratio microscope with excellent optical system.

- It is special designed and used to be used petrographic field.

- Polarizer and analyzer can realize polarization.



Item Description / Value
Optical system: Plan Achromatic optical system.
View tube: Hinge type binocular, 30°inclined, 360°rotaing. Inter-pupillary distance adjustable range:54-75mm,
Eyepiece: PL10X/20mm
Objective:

Long work Plan achromatic metallurgical objective:

Optional: 4X,10X, 20X, 40X, 60X, 100X.

Polarizing kits:

Analyzer: Built-in analyzer with scale, removable from optic path. 360°rottable with 0.1°L.C. λ-Gypsum plate(1st.order red compensating plate, 560nm).

1/4λ Mica (145nm).

Quartz wedge (I-IV order).

Nosepiece: 4-position/Quadruple.
Focusing system: Coarse and fine focusing knobs on both sides.
Stage: Double layer mechanical stage/platform, size: 150mm diameter.
Illumination: Transmission illumination and Reflected illumination.
Camera: Optional



400X 200X Petrographic Optical Polarizing Microscope Reflected Illumination Transmission 0
