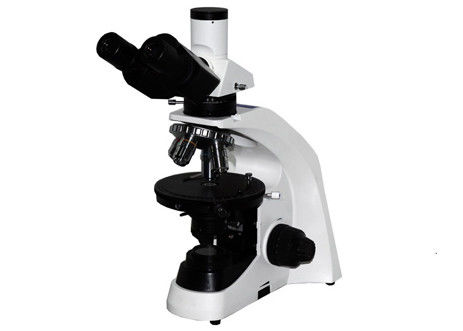

Trinocular Educational Microscope Kit WF10X/20mm Student Microscope With Mechanical Stage

Trinocular Educational Microscope Kit WF10X/20mm Student Microscope With Mechanical Stage
Trinocular Educational Microscope Kit WF10X/20mm Student Microscope With Mechanical Stage

Large Image :  Trinocular Educational Microscope Kit WF10X/20mm Student Microscope With Mechanical Stage

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M14108
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Trinocular Educational Microscope Kit WF10X/20mm Student Microscope With Mechanical Stage

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Biological Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Eyepiece: WF10X/20mm Optical System: Plan Achromatic Optical System
Objective: 4X/10X/40X/100X Focusing: Coaxial Coarse And Fine Focusing
Condenser: N.A. 1.25 Illumination: LED
High Light:

Trinocular educational microscope kit

,

WF10X/20mm educational microscope kit

,

10X student microscope with mechanical stage



Trinocular Education Lab Polarizing Biological Microscope



M14108 Trinocular Education Lab Polarizing Biological Microscope. It is a polarizing microscope with rotating round stage, fit for education, research Lab and clinic etc.



Features:



- Designed by special focusing mechanism, Coaxial coarse and fine focusing system. Knobs on both sides. Tension adjustment of coarse regulation knob. Focusing stopper for protecting the lens and specimen. Fine adjustment accuracy(adjustment gradations) :0.002mm.

- Transmission illumination system is highly efficient with LED lamp and brightness is adjustable.



Item Description / Value
Optical system: Plan Achromatic optical system.
View tube: Binocular/trinocular, 360° rotating, 30 ° included. Adjustable Diopter. IPD adjustment: 55mm ~ 75mm.
Eyepiece: WF10X / 20mm, Optional: 16X.
Objective: Plan Achromatic 4X, 10X, 40X, 100X.
Magnification: 40X-1000X
Nosepiece: 4-position/Quadruple.
Condenser: N.A. 1.25 Abben condenser with Iris diaphragm.
Stage: Round rotating stage with scale. Stage size: Φ150mm, 360° rotating.
Camera adapter: For trinocular: 0.5X or 1X C-mount.
Digital camera: Optional.



Trinocular Educational Microscope Kit WF10X/20mm Student Microscope With Mechanical Stage 0
