Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Packing: | 1 PC/Carton | Warranty: | 1 Year |
| Drawtube: | Trinocular | Theory: | Metallurgical Microscope |
| Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
| Eyepiece: | PL10X | Application: | Industrial Inspection |
| Magnification: | 50X-1000X | Optical System: | Infinite Optical System |
| Illumination: | 100W Halogen Lamp Or LED | Camera: | Optional |
| High Light: | 50X Optical Polarizing Microscope,LCD Optical Polarizing Microscope,1000X polarizing metallurgical microscope |
||

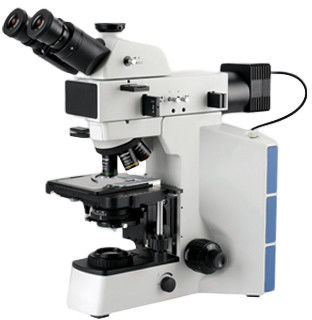

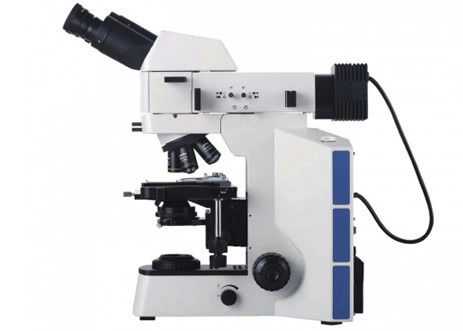

50X-1000X Polarizing Metallurgical Microscope for Material Analysis Petrology Research and Coating Analysis
M14105 is special designed for PCB cross section analysis, layer thickness measurement, LCD checking, metal or nonmetal material analysis etc.
Features:
| Item | Description / Value | M14105 |
| Observation: | Bright field, polarizing. | ● |
| Optical system: | Infinity plan achromatic optical system | ● |
| View tube: |
Trinocular, 30° inclined, 360° rotating. IPD adjustment: 54mm~75mm. Diopter adjustment: ± 5 diopters. Splitting ratio: 100:0 or 50:50. |
● |
| Eyepiece: | High eye level WF PL10X /22mm. | ● |

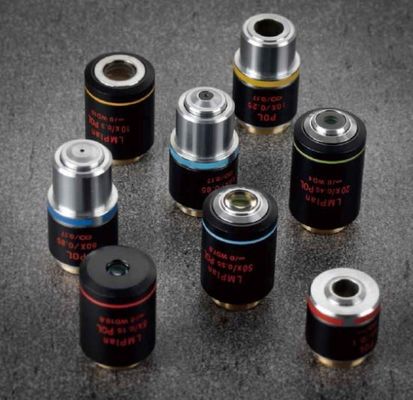

| Objective: | Infinity plan achromatic long working distance metallurgical objective: Standard: 5X, 10X, 20X, 50X； | ● |
| Optional: 100X | ○ | |
| Parfocal distance: | 45mm | ● |
| Nosepiece: | Reversed Quintuple (5-position). | ● |
| Stage: |
Double layer mechanical stage: 175*145mm. Moving range: 76mm*42mm, accurancy: 0.1mm. Right hand gang control for X and Y direction. Reflecting metal stage plate/Reflecting and transmission glass stage plate. |
● |
| Focusing system: |
Coaxial coarse and fine focusing system. Tightness and height limitation of coarse regulation are adjustable. Fine adjustment accuracy: 0.001mm. Coarse adjustment: 28mm. With focusing stopper to protect the objective and specimen. |
● |
| Illumination: |
Transmitted & reflected illumination, the two illuminations can work at the same time. Reflected illumination: 5W LED, with presetting center and adjustable field stop and aperture stop. Transmitted illumination: 5W warm light LED, with presetting center and adjustable field stop and aperture stop. |
● |
| Condenser: | Transmission condenser N.A 0.9, with aperture iris diaphragm. | ● |
| Polarizing kit: | Polarizer and analyzer. | ● |
| Camera adapter: | 0.5X or 1X C-Mount. | ● |
| Digital camera: | Optional. | ○ |
| Power supply: | AC100-240V, 50/60Hz. | ● |
Note: ● means standard, ○ means optional
