Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M17104
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Achromatic Phase Contrast Microscope Light Source 6V 20W Kohler Illumination System

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Binocular
Theory: Biological Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Magnification: 40X~1000X
Eyepiece: WF10X/18mm Objective: 4X, 10X, 40X, 100X
Focusing: Coarse And Fine Adjustment Focusing Nosepiece: Quadruple Nosepiece
High Light:

Achromatic phase contrast microscope light source

,

100X phase contrast microscope light source

,

6V 20W kohler illumination system



Built-in Illumination 40X-1000X Binocular Phase Contrast Microscope

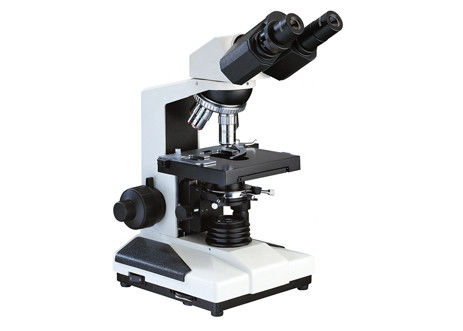

M17104 Built-in Illumination 40X-1000X Binocular Phase Contrast Microscope. M17104 is a phase-contrast microscope with built-in illumination, 6V20W halogen lamp.



Features:



- Competent for scientific research, medicine, industry, agriculture and education.

- Uniform illumination with consistent color temperature.

- Enables users to remain comfortable during long periods of routine microscopy observations.



Item Description / Value
Objective: Achromatic 4X, 10X, 100X(Oil)
Nosepiece: Four-hole converter
Head: Sliding binocular head, 30° inclined
Eyepiece: WF10X/18mm
Magnification: 40X~l000X
Phase Contrast: Phase contrast objective 40X; Phase contrast slide 40X; Phase contrast condenser; Centering telescope 10X
Stage: Double layer mechanical stage, 140*140mm, moving range 50*75mm
Focusing mechanism: Coaxial coarse & fine focusing. Fine focusing scale 0.002mm, coarse focusing stroke 37.7mm/rotation, with tension adjustment, with up limit, base bearing black plastic cap.
Light source: Built-in illumination 6V20W halogen lamp, 100~240V
Condensor: N.A.1.25 Abbe condenser, iris diaphargm, with filter holder
Filter: Blue, Yellow, Green



Achromatic Phase Contrast Microscope Light Source 6V 20W Kohler Illumination System 0
