Binocular 40X 1000X Binocular Phase Contrast Light Microscope Inverted Biological Coarse

Binocular 40X 1000X Binocular Phase Contrast Light Microscope Inverted Biological Coarse
Binocular 40X 1000X Binocular Phase Contrast Light Microscope Inverted Biological Coarse

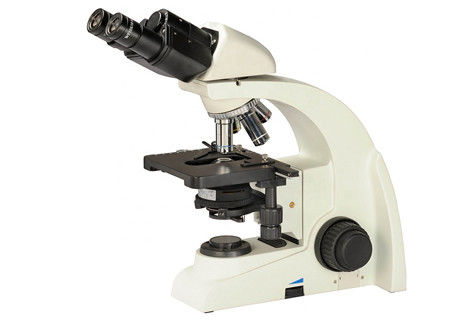

Large Image :  Binocular 40X 1000X Binocular Phase Contrast Light Microscope Inverted Biological Coarse

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M17105
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Binocular 40X 1000X Binocular Phase Contrast Light Microscope Inverted Biological Coarse

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Binocular
Theory: Biological Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Magnification: 40X~1000X
Eyepiece: WF10X/18mm Objective: 4X, 10X, 40X, 100X
Focusing: Coarse And Fine Adjustment Focusing Nosepiece: Quadruple Nosepiece
High Light:

40X Binocular phase contrast light microscope

,

1000X phase contrast light microscope

,

Coarse inverted biological microscope



Biological Binocular 40X-1000X Phase Contrast Microscope



M17105 Biological Binocular 40X-1000X Phase Contrast Microscope. M17105 is a phase-contrast microscope special designed for biological research application.



Features:



- Brightness adjustable, 6V 20W halogen illumination, and 3W LED.

- Seidentopf binocular head 30° inclined, 360 ° rotatable interpupillary distance 52-75mm.

- Enables users to remain comfortable during long periods of routine microscopy observations.



Item Description / Value
Objective:

Infinity Achromatic objective 4X;

Infinity Achromatic phase-contrast objective 10X;

Infinity Achromatic phase-contrast objective 40X(S);

Infinity Achromatic phase-contrast objective 100X(S/Oil).

Nosepiece: Four-hole converter
Eyepiece: WF10X/18mm
Magnification: 40X~l000X
Stage: Mechanical stage with double layers, 142mmx135mm, movement range 76mmx 52mm
Focusing mechanism: Coaxial coarse and fine focus mechanism with markings. Fine focus sensitivity 0.001mm
Condensor: N.A. 1.25 Abbe condenser with iris diaphragm, with phase-contrast slide



Binocular 40X 1000X Binocular Phase Contrast Light Microscope Inverted Biological Coarse 0
