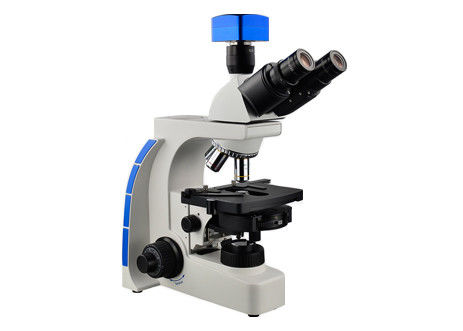

Halogen Trinocular Phase Contrast Microscope 1000X Bright Field And Dark Field Microscopy

Halogen Trinocular Phase Contrast Microscope 1000X Bright Field And Dark Field Microscopy
Halogen Trinocular Phase Contrast Microscope 1000X Bright Field And Dark Field Microscopy

Large Image :  Halogen Trinocular Phase Contrast Microscope 1000X Bright Field And Dark Field Microscopy

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M17109
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Halogen Trinocular Phase Contrast Microscope 1000X Bright Field And Dark Field Microscopy

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Trinocular
Theory: Phase Contrast Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Magnification: 40X~1000X
Eyepiece: WF10X/20mm Focusing: Coarse Focusing
Nosepiece: Quadruple Nosepiece Stage: Attachable Stage
Objective: 4X, 10X, 40X, 100X Condenser: Abbe N.A.1.25
High Light:

Halogen Trinocular Phase Contrast Microscope

,

1000X Trinocular Phase Contrast Microscope

,

bright field and dark field microscopy



Halogen Trinocular Brightfield Phase Contrast Biological Microscope



M17109 Halogen Trinocular Brightfield Phase Contrast Biological Microscope. It is a laboratory grade upright brightfield / phase contrast advanced research and laboratory microscope, the new and cost-effective series biological microscopes. This series employs all new and improved plan optics. It makes the study of mounted specimens fast and easy while delivering an excellent cost-to-performance ratio.



Features:



- The simplest of all the optical microscopy illumination techniques.

- An optical microscopy technique that converts phase shifts in light passing through a transparent specimen to birghtness changes in the image.



Item Description / Value
Head: Trinocular head, interpupillary distance 50-75mm 20:80
Eyepiece: WF10X/20mm
Objective:

*Plan objective: 4X;

*Plan phase contract objective 10X, 40X, 100X

Stage: Mechanical stage 156*138, 76*54mm
Condensor: Abbe N.A.1.25
Illumination: 6V 20W halogen lamp
Bracket: 0.5X C-mount
Filter: Blue
Nosepiece: Four-hole converter
Magnification: 40X~1000X
Focusing mechanism: Coaxial coarse
