Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Warranty: | 1 Year | Drawtube: | Trinocular |
| Theory: | Phase Contrast Microscope | Lead-time: | 15-20 Work Days |
| Supply Ability: | 1000 PCS/Month | Magnification: | 40X~640X |
| Eyepiece: | WF10X/20mm | Focusing: | Coarse Focusing |
| Nosepiece: | Quadruple Nosepiece | Stage: | Double Layers Mechanical Stage |
| High Light: | 40X phase contrast microscope magnification,640X phase contrast microscope magnification,dark field and phase contrast microscopy |
||

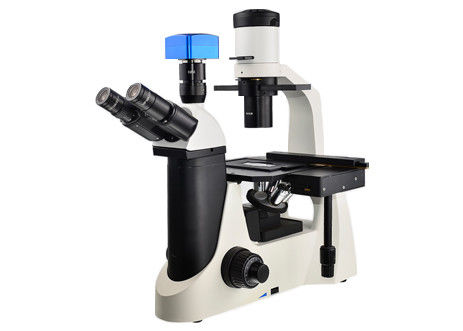

40X 640X Phase Contrast Microscope Magnification Dark Field Biological Inverted
what does dark field microscopy test for?
M17108 40X 640X Phase Contrast Microscope Magnification Dark Field Biological Inverted. The M17108 Inverted Microscope is the premier choice for observing cell and tissue cultures. With ultra-sharp, Infinity-corrected Plan optics, an extra-long WD condenser, and fluorescence capability, the M11112 delivers research-grade observation ideal for cell detection and cell transfection. Choose from standard configurations, or our modular system, which allows for total customization for live cell observation including bright field, phase contrast, fluorescence, or any of these combinations.
Features:
- Allows for longer periods of research.
- Used for viewing larger specimens.
| Item | Specification | M17108 |
| Observation Tube: | Trinocular head inclined at 30° | ● |
| Interpupillary distance: | From 48-75mm | ● |
| Eyepiece: | WF10X/18mm | ● |
| Objectives: | Infinity LWD Plan Achromatic objective 10X, 20X and 40X, LWD Phase Contrast Objective 20X | ● |
| Stage: |
Attachable mechanical stage with size 200x240mm, X-Y travel is 122x80mm |
● |
| Nosepiece: | Quadruple Nosepiece | ● |
| Focusing: | Coaxial focusing knob, fine focusing is graduated in increment of 1um | ● |
| Condenser: | Long working distance Condenser NA 0.30, suitable for Phase contrast/BF with Phase contrast slider and telescope | ● |
| Illumination: | 6V 30W halogen lamp | ● |
| Power supply: | 100-240V | ● |
| Standard accessories: | Dust cover, fuse, power cord | ● |
| Optional accessories | WF10X/22mm eyepiece | ○ |
| WF10X/20mm pointer eyepiece | ○ | |
| 20X achromatic objective | ○ | |
| 60X achromatic objective | ○ | |
| C-mount adapter | ○ | |
| digital camera adapter | ○ | |
| digital camera eyepiece | ○ |
Note: ● means standard, ○ means optional
