6V 20W Trinocular Phase Contrast Microscope Inverted Quadruple Nosepiece

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

6V 20W Trinocular Phase Contrast Microscope Inverted Quadruple Nosepiece

6V 20W Trinocular Phase Contrast Microscope Inverted Quadruple Nosepiece
6V 20W Trinocular Phase Contrast Microscope Inverted Quadruple Nosepiece

Large Image :  6V 20W Trinocular Phase Contrast Microscope Inverted Quadruple Nosepiece

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M17107
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

6V 20W Trinocular Phase Contrast Microscope Inverted Quadruple Nosepiece

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Trinocular
Theory: Phase Contrast Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Magnification: 100X~1000X
Eyepiece: WF10X/18mm Focusing: Coarse And Fine Adjustment Focusing
Nosepiece: Quadruple Nosepiece Stage: Double Layers Mechanical Stage
High Light:

100X Trinocular Phase Contrast Microscope

,

6V 20W Trinocular Phase Contrast Microscope

,

1000X inverted phase contrast microscope



100X-1000X Trinocular Phase Contrast Microscope

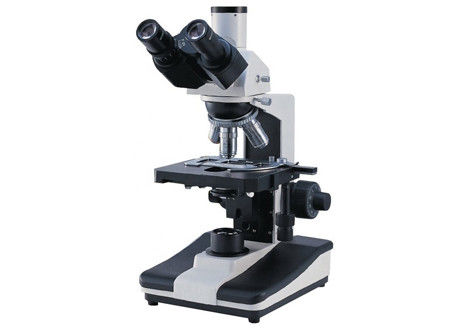

M17107 100X-1000X Trinocular Phase Contrast Microscope. M17107 is a phase-contrast microscope with Kholer illumination 6V 20W halogen lamp, brightness adjustable.



Features:



- Brightness adjustable, 6V 20W Kholer halogen illumination.

- Compensation binocular head inclination 30°.



Item Description / Value
Eyepiece: WF10X/18mm
Objective: Infinity achromatic objective 4X, 10X, 100X
Nosepiece: Four-hole converter
Magnification: 100X~l000X
Stage: Double layer mechanical, size 160x140mm, moving range 75x50mm
Focusing mechanism: Coaxial coarse/fine focusing system. Minimum division of fine focusing: 2um, with tensional adjustable and up stop, base bearing black plastic cap
Condensor: AbbeN.A.1.25 rack & pinion adjustment
Phase Contrast: Phase contrast achromatic objective 10x, 20X, 40X, 100X
Filter: Blue, Yellow, Green
Collector: For halogen lamp



6V 20W Trinocular Phase Contrast Microscope Inverted Quadruple Nosepiece 0
