DIC 20x 10x Transmission Optical Microscope Polarizing WF10X/22mm Trinocular

DIC 20x 10x Transmission Optical Microscope Polarizing WF10X/22mm Trinocular
DIC 20x 10x Transmission Optical Microscope Polarizing WF10X/22mm Trinocular

Large Image :  DIC 20x 10x Transmission Optical Microscope Polarizing WF10X/22mm Trinocular

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M10100
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

DIC 20x 10x Transmission Optical Microscope Polarizing WF10X/22mm Trinocular

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Metallurgical Microscope
Eyepiece: WF10X/22mm Nosepiece: Backward Quintuple Nosepiece
High Light:

DIC 20x transmission optical microscope

,

WF10x/22mm transmission optical microscope 10x

,

WF10X polarizing microscope WF10X/22mm



DIC Trinocular Metallurgical Microscope

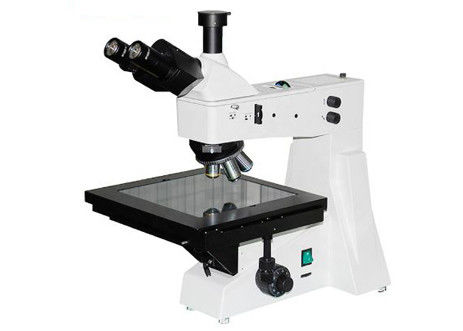

M10100 DIC Trinocular Metallurgical Microscope is suitable to observe many different kinds of objects. It is equipped with transmitted illuminator and reflected DIC system, infinity plan achromatic objectives with long working distance, wide-field eyepieces and polarizer device. It provides clear and 3D image, beautiful sculpt, convenient control etc. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics etc.



Features:



- DIC, Bright Field/Dark Field, Polarizing Observation Available.

- Excellent UIS optical system can obtain excellent optical performance.

- Compact and steady main frame body is embodiment for the shock resistance.

- The large-mobile range mechanical stage is adapted to observe big size specimen or quick check.

- Modularization function design so that update system expediently

- Ideal ergonomic design is adopted in this unit and has easier operation and wider space



Item Description / Value
Head: Trinocular Head, 30° Inclined, Interpupillary Distance 53~75mm
Eyepiece: WF10x/22mm Plan Eyepiece
Nosepiece: Backward Quintuple Nosepiece, Ball Bearing Inner Locating
Objective: Infinity LWD Plan Achromatic Coverless
PL5x/0.12, W.D.26.1mm
PL10x/0.25, W.D. 20.2mm
PL20x/0.40, W.D.8.8mm
PL50x/0.70, W.D. 3.68mm (S)
PL80x/0.80, W.D.1.28mm (S,O)
Working Stage: Large Mechanical Stage 280*270mm, Moving Range 204*204mm
Focusing: Coaxial Coarse & Fine Focus Knob, With Tension Adjustable And Limit Stopper, Minimum Division 0.8um
Polarizing: Polarizer Enable 360° Rotate ANd Switched In/Out
Analyzer Can Be Switched In/Out
Light Source: 12V50W Halogen Lamp, Brightness Adjustable
DIC: DIC Push/Pull Slids, DIC Objetives 5x,10x,20x
