Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Lead-time: | 15-20 Work Days | Packing: | 1 PC/Carton |
| Warranty: | 1 Year | Drawtube: | Trinocular |
| Theory: | Biological Microscope | Magnification: | 40X-1000X |
| Optical System: | Infinity Plan Achromatic Optical System | Eyepiece: | WF10X/22mm |
| Nosepiece: | Quadruple Nosepiece | Focusing System: | Coxial Coarse And Fine Focusing |
| Illumination: | Halogen Lamp Or LED | Application: | Laboratory, Hospital, University |
| High Light: | 40X phase constant microscope,Optical phase constant microscope,Laboratory dark field microscope |
||

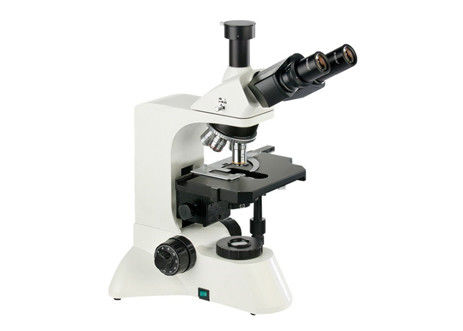

Trinocular Bright Field Dark Field Phase Contrast Laboratory Biological Optical Microscope With Camera
M17100 Trinocular Bright Field Dark Field Phase Contrast Laboratory Biological Optical Microscope With Camera The item could be widely used in various Lab applications with perfect performance. The features are shown as
- It is a multi-observation biological microscope.
- It can be used for water plant, medical lab, biological research lab.
- Optional: bright field, phase contrast, dark field.
| Item | Description / Value |
| Optical system: | Infinity Plan Achromatic optical system |
| Observation: |
Standard: Bright field. Optional: Dark field, phase contrast |
| View tube: | Trinocular, 30 ° inclined, 360°rotating. Diopter adjustment: ± 5 diopters. IPD adjustment: 50mm ~ 75mm. Slice biological microscope |
| Eyepiece: | High eye level wide field WF10 × (Φ22mm). infinity Optional 16X(Φ16mm). |
| Objective(Optional): |
Standard: Infinity Plan Achromatic objective: 4X/0.1, 10X/0.25, 40X/0.65(Spr.), 100X(Oil, Spr.)/1.25 . Optional: Infinity Plan Achromatic phase contrast objective. |
| Nosepiece: |
Standard: Four-position. Optional: : Five-position. |
| Stage: |
Double layer mechanical stage. Stage size: 210*140mm. Moving range: 75mm ×50mm , Precision: 0.2mm |
| Focusing system: |
Coxial coarse and fine focusing system. Tightness and height limitation of coarse regulation are adjustable. Fine adjustment accuracy :0.002mm. Focusing stoper for protecting the lens and specimen. |
| Illumination: |
Halogen lamp or LED. Brightness adjustable. |
| Condenser: |
Abbe NA 1.25 condenser, with aperture iris diaphragm. Optional: Dark field condenser. |
| Camera adapter: | 0.5X or 1X C-Mount. |
| Digital camera: | Optional. |
