BD DIC Optical Polarizing Microscope Light Flexible Semi APO Hinged Trinocular Head

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

BD DIC Optical Polarizing Microscope Light Flexible Semi APO Hinged Trinocular Head

BD DIC Optical Polarizing Microscope Light Flexible Semi APO Hinged Trinocular Head
BD DIC Optical Polarizing Microscope Light Flexible Semi APO Hinged Trinocular Head

Large Image :  BD DIC Optical Polarizing Microscope Light Flexible Semi APO Hinged Trinocular Head

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M14101
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

BD DIC Optical Polarizing Microscope Light Flexible Semi APO Hinged Trinocular Head

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Metallurgical Microscope
Eyepiece: PL10X22mm Head: Hinged Trinocular Head
Objective: Bright Field And Dark Field Infinity Metallographic Objective Nosepiece: 5 Holes Revolving Nosepiece
Focusing: Coaxial Coarse And Fine Adjustment Optical System: Infinity Chromatic Aberration Correction Optical System
High Light:

BD DIC Optical Polarizing Microscope

,

Semi APO Optical Polarizing Microscope

,

flexible polarized light optical microscopy



Upright BD DIC Semi-APO Polarizing Metallurgical Microscope

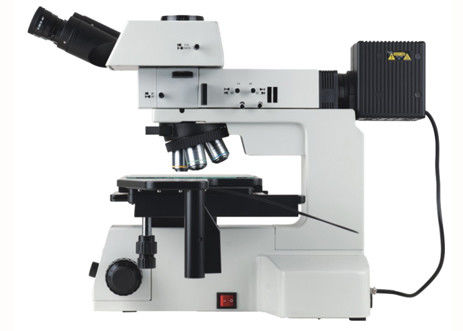

M14101 Upright BD DIC Semi-APO Polarizing Metallurgical Microscope With flexible system, excellent imaging performance and stable system architecture, these series professional used in industrial testing and metallographic analysis. The operating mechanism is based on ergonomic design, which can maximum reduce fatigue during using. Modular component design can freely assemble. This product integrated bright-field, oblique illumination, polarizing, DIC differential interference and other observed functions based on the practical application of functional selection.



Features:



- This product can achieve X, Y directions 105mmx105mm range of movement.

- The new design of the long working distance professional metallurgical objective, high power objective designed with semi-apochromatic technology.

- Under a variety of observation methods, it can get sharp and high-contrast microscopic image.

- With well-equipped accessary, the system can be flexibly combined with the functional expansion.

- Economic design, reliable system architecture.



Item Description / Value
Head: Erect image observation tube, 25° compared with chain trinocular, splitting ratio, binocular trinocular = 100:0 or 0:100
Optical system: Infinity chromatic aberration correction optical system
Eyepiece: PL 10X/22
Objective: LMPL-BD infinite long working distance bright and dark field metallographic objective lens
Nosepiece: 5-hole tilt-in adapter with DIC slot
Microscope body: With coarse adjustment mechanism upper limit and tightness adjustment device. Built-in 100-240V. Wide voltage transformer, single power output
Reflective illuminator system: With variable field of view light, all adjustable center, with filter insert and polarized light insert, with bright and dark field switching mechanism, pre-center, using digital dimming, with light intensity setting and reset function
Size of the package: 64X34X41 cm
Gross weight: 7.80kg
