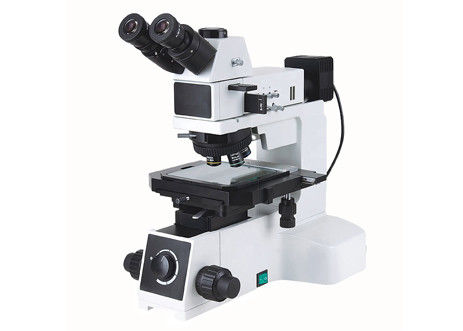

Bright Dark Field Apo Microscope DIC Reflected And Transmitted Light Microscope

Bright Dark Field Apo Microscope DIC Reflected And Transmitted Light Microscope
Bright Dark Field Apo Microscope DIC Reflected And Transmitted Light Microscope

Large Image :  Bright Dark Field Apo Microscope DIC Reflected And Transmitted Light Microscope

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M10105
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Bright Dark Field Apo Microscope DIC Reflected And Transmitted Light Microscope

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Metallurgical Microscope
Application: Machinery, Electronics, Plastics Etc. Eyepiece: PL10X22mm
Optical System: Infinity Chromatic Aberration Correction Optical System Head: Hinged Trinocular Head
Objective: Bright Field And Dark Field Infinity Metallurgical Objective Nosepiece: 5 Holes Revolving Nosepiece
Focusing: Coaxial Coarse And Fine Adjustment
High Light:

PL10X22mm DIC Bright apo microscope

,

PL10X22mm Dark Field apo microscope

,

Phidix reflected and transmitted light microscope



Professional DIC APO objective Bright Dark field Metallurgical Microscope



M10105 Professional DIC APO objective Bright Dark field Metallurgical Microscope This product has flexible system, excellent imaging performance and stable system architecture. It’s professionally used in industrial testing and metallographic analysis. The operating mechanism is based on ergonomic design, which can maximum reduce fatigue during using. Modular component design can freely assemble. This product integrated bright-field, oblique illumination, polarizing, DIC differential interference and other observed functions based on the practical application of functional selection.



Features:



- It can achieve X, Y directions 105mmx105mm range of movement.

- The new design of the long working distance professional metallurgical objective, high power objective designed with semi-apochromatic technology.

- Under a variety of observation methods, it can get sharp and high-contrast microscopic image.

- With well-equipped accessories, the system can be flexibly combined with the functional expansion.

- Ergonomic design, reliable system architecture.



Item Description / Value
Optical System: Infinity chromatic aberration correction optical system
Head: 30° hinged trinocular
Measuring Range: X-axis: 300mm minimum, Y-axis: 200mm minimum, Z-axis: 200 mm minimum
Eyepiece:

High eye point vide field plan eyepiece PL 10X/22mm

Optional: High eye point vide field eyepiece PL15X16mm

Objective lens: LMPL infinite long working distance metallographic objective
Nosepiece: 5-hole tilt-in adapter with DIC slot
Stage: 4" double-layer pile mobile platform, stroke 105x 105mm, with metal flat platform, right hand X, Y mobile hand-wheel, with platform interface
Microscope body: With coarse adjustment mechanism upper limit and tightness adjustment device. Built-in 100-240V. Wide voltage transformer, single power output.
Reflective illuminator system: With variable field diaphragm and aperture diaphragm, both adjustable center, with filter slot and polarized light installation slot, with oblique lighting switch lever. Single high-power 5W LED, white, light intensity continuously adjustable
Transmissive lighting system can be added: A high-power 5W LED, white, continuously adjustable light intensity. N.A.0.5 condenser with variable aperture diaphragm
Package Size: 64X34X41 cm
Gross Weight: 7.80 kg
